Power Distribution & Control · Surge protection devices

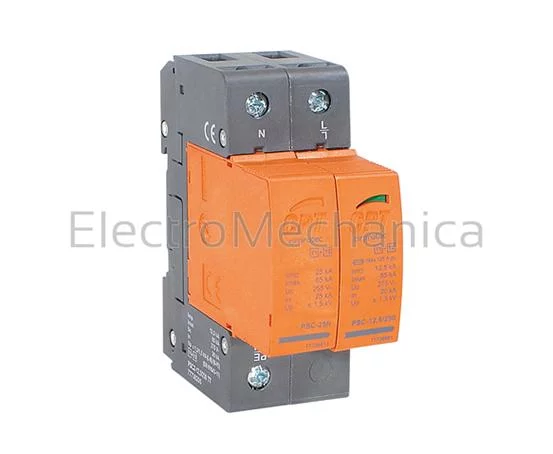

TYPE 1+2 Imax 65kA 2P 1PH+N SPD
SKU PSC2-12.5/230 TT
R 3 952.54incl. VAT
Quantity:
1
Specifications
- Category
- Power Distribution & Control
- Sub-category
- Surge protection devices
- Product code
- PSC2-12.5/230 TT
- Type
- Inventory Item
- Sub Category
- Surge protection devices
- CONFIGURATION
- 1PH+N
- Main Category
- N - Safety
- Pricing Group
- CAT B5
- 8/20 µs (Imax)
- 65kA
- NUMBER OF POLES
- 2
- WIDTH IN 17.5MM
- 2
- 10/350 µs (Iimp)
- 12.5kA
Detailed Description
Modular plug-in surge protection devices
For the protection of low voltage equipment against transient voltages and current surges from atmospheric origins (lightning) as well as transients produced by switching characteristics such as in switching of distribution networks, transformers, motors, etc. Suitable for first level of protection with incoming power supply panels and areas with greater exposure to lightning. For installations usually provided with external lightning protection systems.
Features:
- Capable of protecting equipment from direct lightning strikes
- High discharge capacity 10/350 ¼: 12.5kA or 25kA per phase
- Provides protection for most sensitive equipment (IEC 60634-4-443 category 1)
- Type 1+2 / Class I+II lightening current and surge arrestor (combined in a single device)
| (10/350 ¼) L-N (LIMP) | 12.5kA |
| (8/20 ¼) L-N (IMAX) | 65kA |
| MAXIMUM VOLTS L-N (Uc) | 275 V |
| VOLTAGE PROTECTION (Up) | ‰Â¤ 1.3kV |
| POLES | 2 |
| CONFIGURATION | 1ph+N |
| WIDTH IN 18 (MM) | 2 |
