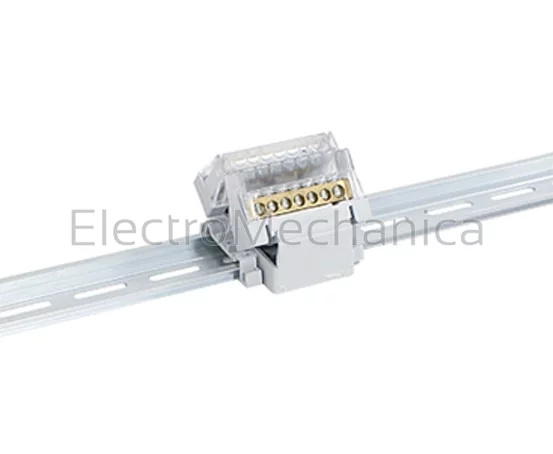

7W 2P DISTRIBUTION BLOCK 63A
SKU 1MR6372
R 120.52incl. VAT
Quantity:
1
Specifications
- Category
- Power Distribution & Control
- Sub-category
- Distribution blocks & Busbar supports
- Product code
- 1MR6372
- Type
- Inventory Item
- DEPTH
- 45mm
- WIDTH
- 59mm
- HEIGHT
- 68mm
- SERIES
- 1MR
- MATERIAL
- Polyamide
- MOUNTING
- DIN or chassis
- WIRE SIZE
- 2-16mm²
- Sub Category
- Distribution blocks & Busbar supports
- Pricing Group
- CAT L
- CURRENT RATING
- 63A
- NUMBER OF WAYS
- 7
- NUMBER OF POLES
- 2
Detailed Description
Multi-pole distribution terminals 750V
General features:
- Supplied with insulated DIN rail cover
- Brass terminal bar with zinc plated screws
- Support material polyamide - cover polycarbonate
- Low profile 45 mm deep (height of standard MCBs)
- Additional terminal bars M107/1011/1015 can easily be clipped onto above distribution terminals
| DESCRIPTION | Multi-pole distribution terminals |
| AMPS | 63A |
| NUMBER OF POLES | 1Phase + Neutral (2 pole) |
| MATERIAL | Brass terminal bar with zinc plated screws |
| MOUNTING | DIN rail or chassis mounting (supplied with insulated DIN rail cover) |
| IPK | 12kA |
| CONFORMITY OF STANDARDS | Standards: EN 60998-1:2004, EN 60998-2-1:2004 |
| DIMENSIONS (MM) | (H) 60 x (W) 59 |
