Power Distribution & Control · Distribution blocks & Busbar supports

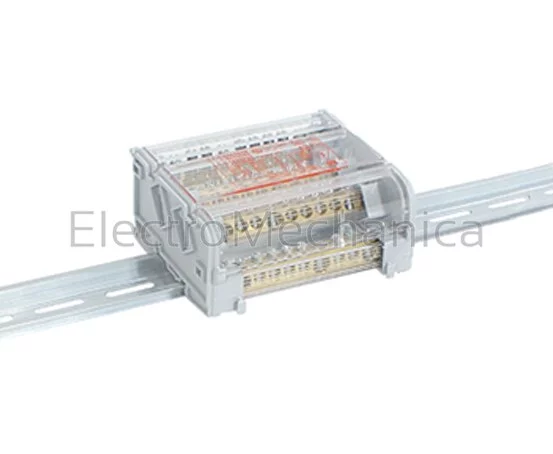

15W 4P DISTRIBUTION BLOCK 125A
SKU 1MR125154
R 525.32incl. VAT
Quantity:
1
Specifications
- Category
- Power Distribution & Control
- Sub-category
- Distribution blocks & Busbar supports
- Product code
- 1MR125154
- Type
- Inventory Item
- DEPTH
- 45mm
- WIDTH
- 138mm
- HEIGHT
- 98mm
- SERIES
- 1MR
- MATERIAL
- Polyamide
- MOUNTING
- DIN or chassis
- WIRE SIZE
- 35mm²
- Sub Category
- Distribution blocks & Busbar supports
- Pricing Group
- CAT L
- CURRENT RATING
- 125A
- NUMBER OF WAYS
- 15
- NUMBER OF POLES
- 4
Detailed Description
Multi-pole distribution terminals 750V
General features:
- Supplied with insulated DIN rail cover
- Brass terminal bar with zinc plated screws
- Support material polyamide - cover polycarbonate
- Low profile 45 mm deep (height of standard MCBs)
- Additional terminal bars M107/1011/1015 can easily be clipped onto above distribution terminals
| DESCRIPTION | Multi-pole distribution terminals |
| AMPS | 125A |
| NUMBER OF POLES | 3 Phase + Neutral (4 pole) |
| IPK | 22kA |
| CONFORMITY OF STANDARDS | Standards: EN 60998-1:2004, EN 60998-2-1:2004 |
| DIMENSIONS (MM) | (H) 98 x (W) 138 |
