Timers & Control Relays · Plug-in timing & Monitoring devices

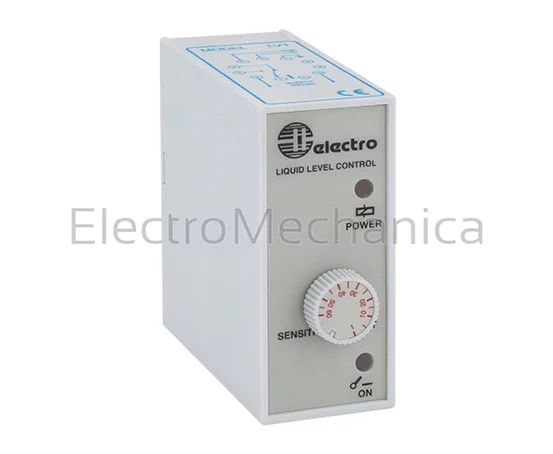

LIQUID LEVEL CONTROLLER 230VAC
SKU LVC1230A
R 735.08incl. VAT
Quantity:
1
Specifications
- Category
- Timers & Control Relays
- Sub-category
- Plug-in timing & Monitoring devices
- Product code
- LVC1230A
- Type
- Inventory Item
- FUNCTIONS
- Emptying or filling
- Sub Category
- Plug-in timing & Monitoring devices
- Pricing Group
- CAT J
- CURRENT RATING
- 10A
- SUPPLY VOLTAGE
- 230VAC
Detailed Description
Capacitive Level Controller
The Electro 11 pin plug-in range of control and timing devices are to be installed into a standard 11 pin base making installation easy and convenient.
Level control unit for any liquids or granules which can be configured for FILLING or EMPTYING. The unit can be used as a one probe system for alarm purposes or a two probe system to control HIGH and LOW levels or a reservoir. A power supply for the two NPN capacitive proximity sensors is built into the unit.
Features:
- Fail-safe control feature
- Power supply ON and Relay ON LEDs
- Power supply for two 3wire NPN proximity switch
- Rear DIP switch selectable FILLING/EMPTYING
| DESCRIPTION | DC capacitive probe controller |
| FUNCTION | Emptying/ filling |
| CONTACT | 10A SPDT |
| RATED VOLTAGE | 250V |
| MECHANICAL LIFE | 10x106 cycles |
| PROTECTION INDEX IP | IP 20 |
| OPERATING TEMPERATURE | -10 to + 50°C |
| STORAGE TEMPERATURE | -50 to + 85°C |
| DIMENSIONS (MM) | (H) 92 x (W) 36 x (D) 64 |
