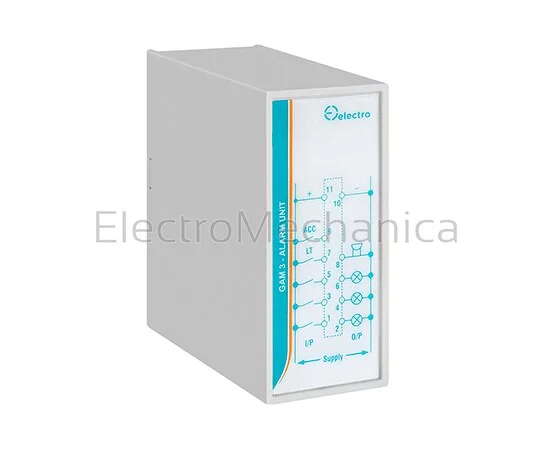

CIRCUIT ALARM MODULE 12VDC
SKU GAM3012D
R 893.32incl. VAT
Quantity:
1
Specifications
- Category
- Timers & Control Relays
- Sub-category
- Plug-in timing & Monitoring devices
- Product code
- GAM3012D
- Type
- Inventory Item
- Sub Category
- Plug-in timing & Monitoring devices
- Pricing Group
- CAT J
- SUPPLY VOLTAGE
- 12VDC
Detailed Description
Alarm Module
The Electro 11 pin plug-in range of control and timing devices are to be installed into a standard 11 pin base making installation easy and convenient.
Alarm module to control alarm signals and generate the appropriate output for simple annunciator panels. The system can be expanded by bridging all common terminals of the modules. A flasher unit (R1F) isused to initiate the flashing alarm outputs before accepting them.
Features:
- Expandable
- Flasher input
- Hooter output
- Output 10A SPDT
- Alarm accept facility
- Common 1amp test facility
- Three normally open alarm inputs
- Three normally open alarm outputs
| DESCRIPTION | Control alarm signals |
| CONTACT | 4 x 5A SPDT |
| ALARM INPUTS | 3 N/O (positive common) |
| ALARM ACCEPT | N/O (positive common) |
| LAMP TEST | N/O (positive common) |
| FLASHER | 30 flashes per minute |
| RATED VOLTAGE | 250V |
| MECHANICAL LIFE | 10x106 cycles |
| PROTECTION INDEX IP | IP 20 |
| OPERATING TEMPERATURE | -10 to + 50°C |
| STORAGE TEMPERATURE | -50 to + 85°C |
| DIMENSIONS (MM) | (H) 92 x (W) 36 x (D) 64 |
