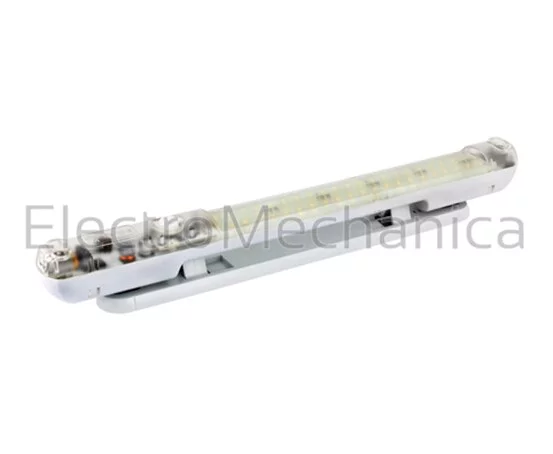

5W LED PANEL LAMP+INFRARED SENSOR
FLL-300565U-IR
R 2 110.15 Incl VAT
(0 reviews)
Online ordering is temporarily unavailable. You can still browse this product or request a spec sheet.
Quantity:
1
Product Details
Category:Power Distribution & Control
Sub category:Panel-mount fans & Lamps
Product code:FLL-300565U-IR
Type:Inventory Item
DEPTH:48mm
WIDTH:356mm
HEIGHT:32mm
SERIES:FLL
POWER RATING:5W
Sub Category:Panel-mount fans & Lamps
Main Category:H - Enclosures & Climate Control
Pricing Group:CAT H
SUPPLY VOLTAGE:115-230VAC
Detailed Description
Fandis FLL series panel lamps
During maintenance and inspection on switchboards it is essential for operators to have a good level of lighting in order to clearly see components within the panel. The use of LEDs provides effective illumination capacity within electrical cabinets at significantly low consumption. The slimline design makes the lamp ideal for applications in tight spaces providing greater installation versatility and guarantee of safety.
Features:
- Lamp rotates to six different positions on base (max. to 40°)
- 120° radius with delayed auto off with no detected presence
- Magnetic fastening for simple positioning on metallic surfaces (with optional magnet set)
- Switching is via a mounted switch or version with a PIR sensor which detects motion within
- Termination is via push-in cage clamp terminals on both sides with an incorporated release button
| SERIES | FLL series |
| POWER (W) | 5 |
| DESCRIPTION | LED panel lamp with infrared sensor |
| OPERATING VOLTAGE | 110/230 VAC |
| OPERATING TEMPERATURE | -30 to 60°C |
| LIFETIME | 160.000h at 25°C |
| LED | 290 Lm, 120°, daylight, colour temperature 6500K |
| INFRATED SENSOR | Yes |
| DIMENSIONS (MM) | (H) 32 x (W) 356 x (D) 46 |
