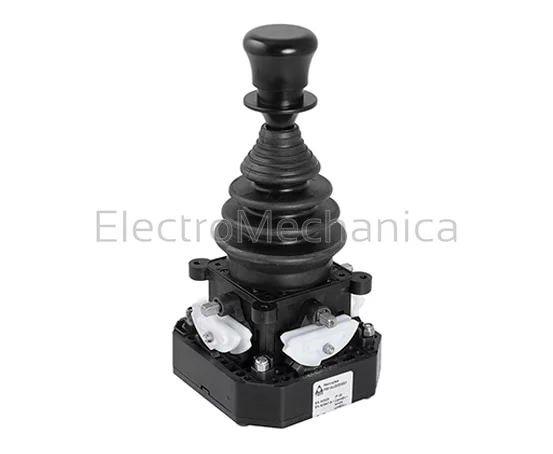

1-1 360 JOYSTICK CONTROLLER
F661AL0111
R 11 477.00 Incl VAT
(0 reviews)
Online ordering is temporarily unavailable. You can still browse this product or request a spec sheet.
Quantity:
1
Product Details
Category:Control And Signaling
Sub category:Joystick controllers
Product code:F661AL0111
Type:Inventory Item
ACTION:360 degree
SERIES:Hercules
Sub Category:Joystick controllers
Pricing Group:CAT D
NUMBER OF STEPS (Y/X AXIS):1-1
Detailed Description
HERCULES series joystick control switches
New HERCULES joystick controller, completely new design for applications in harsh environments. Attention to design, ergonomics, operation accuracy ensure reliability and extended mechanical life. Available with up to 5 speeds in each direction with cross or 360° movement.
- IP protection degree: IP65 (enclosure dependant)
- Ambient temperature: Operational -25°C/+70°C
- Mechanical life: 5 x 1 000 000 operations
- Connections: Screw type terminals
- Utilisation category: AC 15
- Conformity to standards: IEC/EN 60204-1, 60947-1, 60947-5-1, 61000-6-2/3
Hercules - Version with micro switch-board
- Standard version with switch board and mounted high reliability micro switches
- Knob type lever with dead man safety mechanically interlocked and 1CO contact
- Inductive loads: 1A 125 VAC, 0.5A 250 VAC, 1A 30 VDC
- Resistive loads: 3A 125 VAC, 2A 250 VAC, 3A 30 VDC
| SERIES | Hercules series |
| NUMBER OF STEPS (Y-AXIS) | 1 |
| NUMBER OF STEPS (X-AXIS) | 1 |
| KNOB LEVER TYPE | Dead man switch ( safety mechanically interlocked) |
| DESCRIPTION | Joystick control switch with micro switch board |
| UTILISATION CATEGORY | AC 15 |
| INDUCTIVE LOADS | 1A 125 VAC, 0.5A 250 VAC, 1A 30 VDC |
| RESISTIVE LOADS | 3A 125 VAC, 2A 250 VAC, 3A 30 VDC |
| STANDARDS OF COMFORMITY | IEC/EN 60204-1, 60947-1, 60947-5-1, 61000-6-2/3 |
