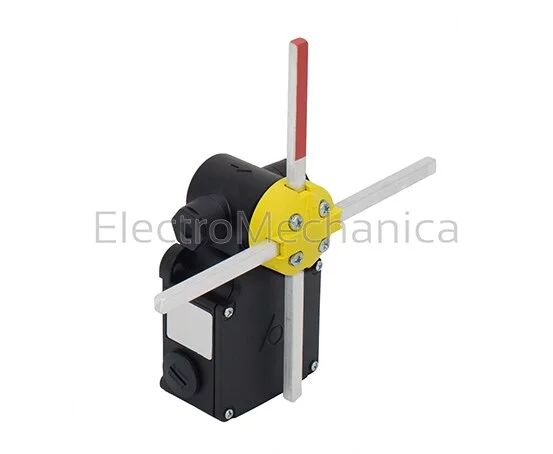

POSITION LIMIT SWITCH X ROD 3POS
F201110002
R 4 761.00 Incl VAT
(0 reviews)
Online ordering is temporarily unavailable. You can still browse this product or request a spec sheet.
Quantity:
1
Product Details
Category:Control And Signaling
Sub category:Joystick controllers
Product code:F201110002
Type:Inventory Item
IP RATING:IP65, IP66, IP67
POSITIONS:3 (fixed) 60°
Sub Category:Joystick controllers
Pricing Group:CAT D
CURRENT RATING:6A
Detailed Description
Position limit switches
Cross position limit switches designed to control the movement of overhead travelling cranes, hoists and complex machine tools. Choice of materials and technical solutions adopted and heads with different types of rods and movements enable use in harsh operating conditions.
Arke series - Position limit switches
- Particularly suitable for use in harsh operating conditions with extreme temperature resistance.
- Cross rods with 4 maintained positions every 90° or single rod with 65° spring return movement.
- Enclosure and head in thermoplastic material (Nylon reinforced with fibreglass)
- Thermal current: 10A
- Rated operational current: 6A
- Operating temperature: -40°C to +80°C
- Mechanical life: 5 x 1 000 000 operations
- Cable entry: Bottom or side (L or R) (supplied with M20 cable gland)
- Supplied with: 2 x (6 x 8 mm) aluminium rods (200 mm)
- Positive opening NC contacts for safety functions
| SERIES | Arke series |
| ACTUATORS | X-rod |
| POSITIONS | 3(fixed) 60° |
| DESCRIPTION | Rotating limit switch |
| CONTACT CONFIGURATION | 1NO x 1NC |
| INDEX PROTECTION IP | IP65, IP66, IP67 |
| RATED OPERATIONAL VOLTAGE | 250 V |
| RATED OPERATIONAL CURRENT | 6 A |
| RATED THERMAL CURRENT | 10 A |
| UTILISATION CATEGORY | AC 15 |
