Power Distribution & Control · Miniature circuit breakers

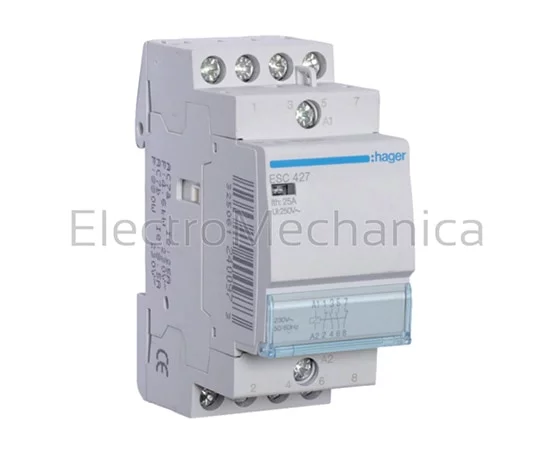

CONTACTOR 25A 2NO+2NC 230VAC
SKU ESC427
R 758.08incl. VAT
Quantity:
1
Specifications
- Category
- Power Distribution & Control
- Sub-category
- Miniature circuit breakers
- Product code
- ESC427
- Type
- Inventory Item
- Sub Category
- Miniature circuit breakers
- CONFIGURATION
- 2NO+2NC
- Pricing Group
- CAT B1
- CURRENT RATING
- 25A
- SUPPLY VOLTAGE
- 230VAC
- NUMBER OF POLES
- 4
- WIDTH IN 17.5MM
- 2
Detailed Description
Modular contactors
Features:
- Four ratings: 16A, 25A, 40A, 63A
- Modular DIN rail mounting (same cut-out as MCBs)
- One and two module contactors feature economy low consumption, low heat dissipation coils
| RATED POWER AC-1 (A) | 25A |
| RATED POWER AC-3 (400V) | 2.6kW |
| COIL VOLTAGE | 230 VAC |
| DESCRIPTION | Modular standard contactor |
| CONTACT CONFIGURATION | 2NO + 2NC |
| WIDTH IN 17.5MM | 2 |
| RATED OPERATIONAL VOLTAGE | 230 V |
| CONNECTION CROSS-SECTION RIGID CABLE | 1 / 10mm² |
| CONNECTION CROSS-SECTION FLEXIBLE CABLE | 1 / 6mm² |
| OPERATING TEMPERATURE | -10 to 50 °C |
| FREQUENCY | 50 Hz |
