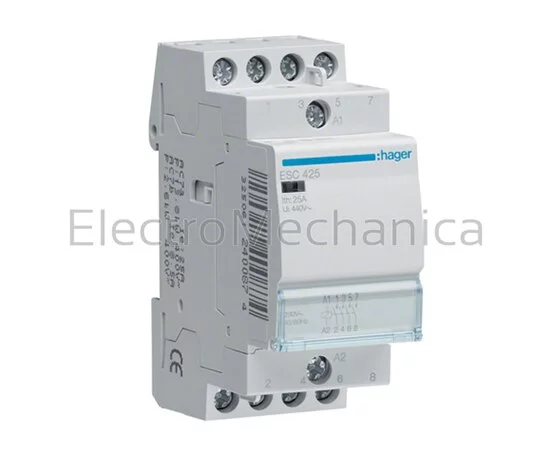

CONTACTOR 25A 4NO 230VAC
ESC425
R 930.35 Incl VAT
(0 reviews)
Online ordering is temporarily unavailable. You can still browse this product or request a spec sheet.
Quantity:
1
Product Details
Category:Power Distribution & Control
Sub category:Miniature circuit breakers
Product code:ESC425
Type:Inventory Item
Sub Category:Miniature circuit breakers
CONFIGURATION:4NO
Pricing Group:CAT B1
CURRENT RATING:25A
SUPPLY VOLTAGE:230VAC
NUMBER OF POLES:4
WIDTH IN 17.5MM:2
Detailed Description
Modular contactors
Features:
- Four ratings: 16A, 25A, 40A, 63A
- Modular DIN rail mounting (same cut-out as MCBs)
- One and two module contactors feature economy low consumption, low heat dissipation coils
| RATED POWER AC-1 (A) | 25A |
| RATED POWER AC-3 (400V) | 2.6kW |
| COIL VOLTAGE | 230 VAC |
| DESCRIPTION | Modular standard contactor |
| CONTACT CONFIGURATION | 4 NO |
| WIDTH IN 17.5MM | 2 |
| RATED OPERATIONAL VOLTAGE | 400 V |
| CONNECTION CROSS-SECTION RIGID CABLE | 1 / 10mm² |
| CONNECTION CROSS-SECTION FLEXIBLE CABLE | 1 / 6mm² |
| OPERATING TEMPERATURE | -10 to 50 °C |
| FREQUENCY | 50 Hz |
