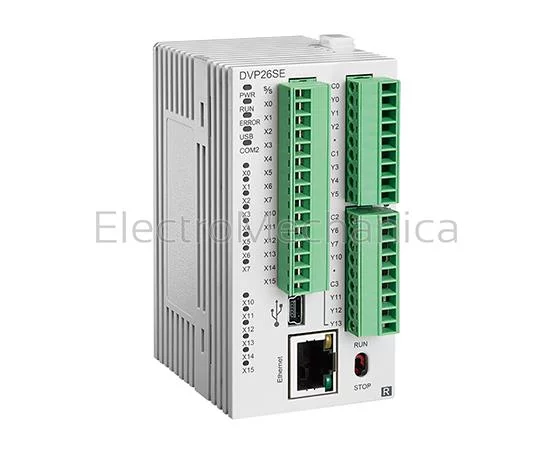

14I+12O SE 24VDC PLC NPN ETHERNET

Slimline Programmable Logic Controllers (PLCs)

Deltas high-performance, high-speed DVP series PLCs are the most efficient and incorporates communication capabilities. Advantages include numerous built-in convenient commands for easy operation access and communication function monitoring. The module-type unit affords tremendous space-saving, allowing simple, clip-on expansion possibilities. The PLCs high performance and extensive I/O units represent a high-value solution for machine control and industrial automation.

Common characteristics

• Adopts 32-bit CPU
• Clip-on extension modules- general (right side)
• Plug-in terminals for ease of wiring and maintenance
• Compact dimensions (H) 90 mm x (D) 60 mm DIN rail mounting
• Plug-in terminals for ease of wiring and maintenance
• Built-in high speed counters up to 100 - 200 kHz (model dependant)
• Dual communication ports RS232 and RS485 MODBUS ASCII/RTU compatible
• Program language: (IL) instruction list, (LD) ladder diagram, (SFC) sequential function chart

SE series network type advanced slim PLC

The most complete network type PLC in the industry. Provides 8 digital inputs and 4 digital outputs. Built-in mini USB, Ethernet and 2 x RS485 ports.

Key features:

• Supports 2-axis linear and arc interpolation
• DVP26SE... supports general expansion modules (right side) only
• High execution speed: LD: 0.64¼, MOV: 2¼
• Built-in mini USB, Ethernet and 2x RS485 com ports
• 8 sets of high-speed counters (2 x 100kHz / 6 x 10kHz)
• Program capacity: 16k steps / data register: 12k words
• Built-in Ethernet supports MODBUS TCP and Ethernet/IP
• 4 sets of of high speed pulse output (2 x 100kHz / 2 x 10kHz)
• MPU points: 12 points (8DI + 4DO) expandable to 480 points
• IP filter function, firewall providing protection from malware and network threats
• Supports DVP-S series left-side (high speed) and right side expansion modules
• No battery required, maintenance free (RTC operates for 15 days after power off)
