UNEQUAL REPEATING TIMER 24VACDC
DUR024AD
R 1 196.00 Incl VAT
(0 reviews)
Online ordering is temporarily unavailable. You can still browse this product or request a spec sheet.
Quantity:
1
Product Details
Category:Timers & Control Relays
Sub category:Modular timing devices
Product code:DUR024AD
Type:Inventory Item
RANGE:6s-60m
Sub Category:Modular timing devices
Pricing Group:CAT J
CURRENT RATING:10A
SUPPLY VOLTAGE:24VAC/DC
WIDTH IN 17.5MM:2
Detailed Description

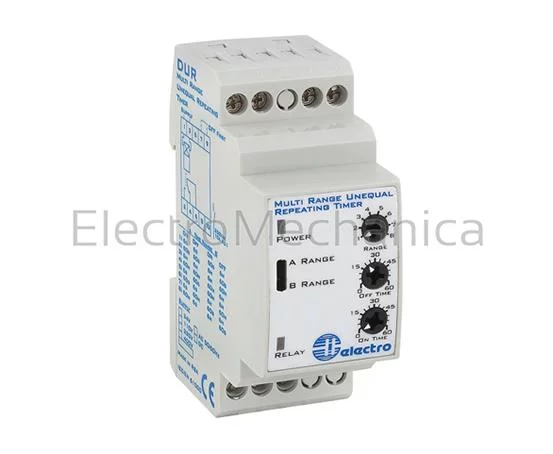

Unequal Repeating Timer - DUR
The Electro D range of control and timing devices are compact modular units for easy introduction into standard panels and/or distribution boards. They mount directly onto DIN rail and align with standard miniature circuit breakers (MCB's).
Multi range timer designed with the latest technology that covers most combinations of ON and OFF time ranges. DIN rail mountable for front and back panel positioning. Any change made to time range by means of front mounted dials will result in a reset of the unit.
Features:
- Microprocessor controlled
- 16 Front face adjustable time range
- Front face adjustable time settings
- Modular 35.5mm DIN rail mountable
- 0.3 - 60 hrs Adjustable ON / OFF time ranges
- 10A SPDT output relay
- LED indication for relay and power supply ON
| DESCRIPTION | Unequal repeating electronic timer |
| TIME RANGE A (ON-OFF) | 6sec - 6sec, 60sec - 60sec, 6min - 6min, 60min - 60min, 6sec - 60sec, 60sec - 6sec, 6sec - 60min, 60min - 6sec |
| TIME RANGE B (ON-OFF) | 60sec - 6min, 6min - 60sec, 6min - 60min, 60min - 6min, 60min - 6hours, 6hours - 60min, 60sec - 6hours, 6hours - 60sec |
| CONTACT | 10A |
| RATED VOLTAGE | 250V |
| MECHANICAL LIFE | 10x106 cycles |
| PROTECTION INDEX IP | IP 20 |
| OPERATING TEMPERATURE | -10 to + 50°C |
| STORAGE TEMPERATURE | -50 to + 85°C |
| DIMENSIONS (MM) | (H) 92 x (W) 36 x (D) 64 |
