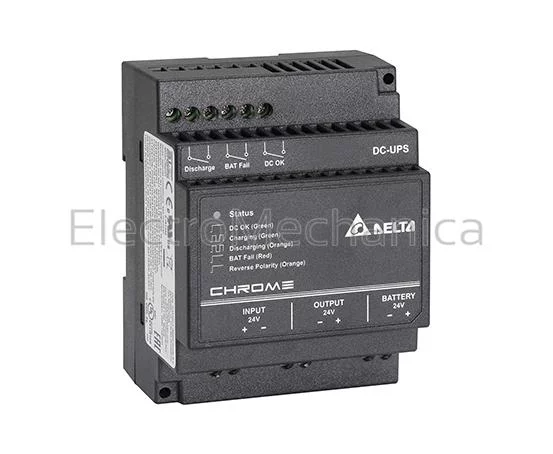

UPS MODULE 24VDC- 10A
DRU-24V10ACZ
R 1 038.45 Incl VAT
(0 reviews)
Online ordering is temporarily unavailable. You can still browse this product or request a spec sheet.
Quantity:
1
Product Details
Category:Power Distribution & Control
Sub category:Power supplies (AC-DC)
Product code:DRU-24V10ACZ
Type:Inventory Item
SERIES:DC-UPS
MOUNTING:DIN
HOUSING TYPE:Plastic
Sub Category:Power supplies (AC-DC)
Pricing Group:CAT B6
CURRENT RATING:10A
OUTPUT VOLTAGE:24-28VDC
SUPPLY VOLTAGE:24-28VDC
Detailed Description
Power supplies
Delta - worlds leading power supply manufacturer offers state-of-the-art designs made to withstand harsh industrial environments in accordance with ATEX requirements. The rugged ultra-compact case is both shock and vibration resistant according to IEC 60068-2.
General features:
- Product features: RoHS compliant
- Full corrosion resistant aluminium chassis
- Provides - overload, overvoltage and thermal protection
- Conformal coating on PCBAs to protect against chemical and dust pollutants
- Wide input voltage range 85 to 264 VAC (1 phase) - 320 to 600 VAC (3 phase)
- Certification: UL508, EN 60950, cULus 60950, EN 50178, EN 60204, GS, CCS Aus
- Power boost (enables reserve power for reliable start up of loads with high inrush currents)
DC-UPS module (without battery)
Features:
- High MTBF > 500,000 hrs per Telcordia SR-332
- Maximum output current up to 40A for 24V application
- Built-in diagnostic monitoring for DC OK, Discharge and Battery Fail by relay contacts
- LED indication of: DC OK, Battery Fail, DC input, Battery Reverse polarity and Battery Discharge
| SERIES | DRU series |
| DESCRIPTION | DC-UPS module |
| OUTPUT VOLTAGE | 24 - 28 VDC |
| RATED LOAD (W) | 10A |
| HOUSING | Plastic |
| MOUNTING | DIN rail |
| OPERATING TEMPERATURE | -20 to + 70 °C |
| DIMENSIONS (MM) | (H) 91 x (W) 71 x (D) 56 |
