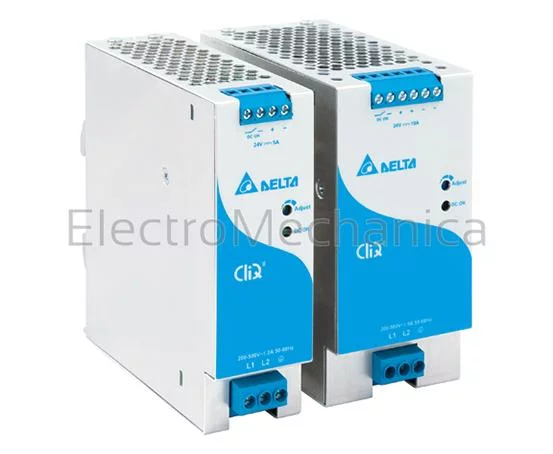

CLiQ II POW SUPPLY 24VDC 960W 3PH

Power supplies

Delta - worlds leading power supply manufacturer offers state-of-the-art designs made to withstand harsh industrial environments in accordance with ATEX requirements. The rugged ultra-compact case is both shock and vibration resistant according to IEC 60068-2.

General features:

• Product features: RoHS compliant
• Full corrosion resistant aluminium chassis
• Provides - overload, overvoltage and thermal protection
• Conformal coating on PCBAs to protect against chemical and dust pollutants
• Certification: UL508, EN 60950, cULus 60950, EN 50178, EN 60204, GS, CCS Aus
• Wide input voltage range 85 to 264 VAC (1 phase) - 320 to 600 VAC (3 phase)
• Power boost (enables reserve power for reliable start up of loads with high inrush currents)

CliQ II series DIN rail mounting

CliQ II DIN rail Power Supplies are high efficiency, high specification units featuring IP20 pluggable terminals they incorporate overvoltage, overload and over temperature protection on the output.

Features:

• High efficiency > 92.0% @ 230 VAC
• Universal AC input voltage without power de-rating
• Conforms to harmonic current IEC/EN 61000-3-2, Class A
• Power Boost of 150% for 5 seconds (480W: 200% for 2 seconds)
