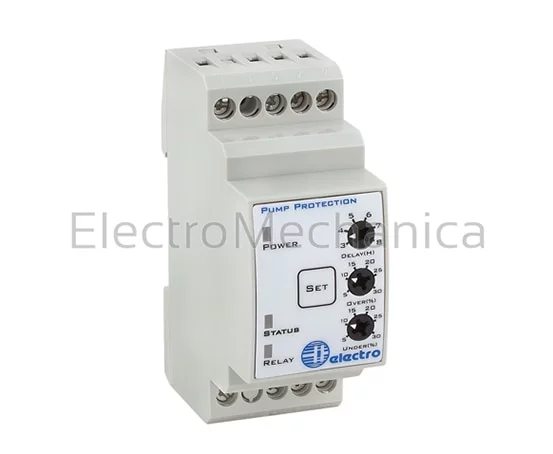

3 PH ADJ PUMP PROTEC RELAY 400VAC
DPP4400A
R 1 633.00 Incl VAT
(0 reviews)
Online ordering is temporarily unavailable. You can still browse this product or request a spec sheet.
Quantity:
1
Product Details
Category:Timers & Control Relays
Sub category:Protection relays & Monitoring devices
Product code:DPP4400A
Type:Inventory Item
Sub Category:Protection relays & Monitoring devices
Pricing Group:CAT J
WIDTH IN 17.5MM:2
MONITORED VOLTAGE:320-460VAC
SWITCHING CURRENT:16A
NUMBER OF PHASE(S):3
Detailed Description
Advanced pump protection relay
The Electro D range of control and timing devices are compact modular units for easy introduction into standard panels and/or distribution boards. They mount directly onto DIN rail and align with standard miniature circuit breakers (MCB's).
Advance pump protection relay to safeguard against damage to borehole pumps. The unit is easily calibrated and then monitors all important pump characteristics. All parameters are saved in non-volatile memory to be available even after power loss. A re-start delay ensures the borehole replenishing before pumping starts again.
Features:
- LED indication for faults
- Automatic diagnosis of pump
- Security input to control pump
- Front face calibration / reset button
- High current 16A SPST output relay
- LED indication for power supply ON
- Modular 35.5mm DIN rail mountable
- High current sensing input (up to 15A)
- Monitors over and under voltage/current
- Under current ( dry running ) restart delay
- High resolution analogue microprocessor
| DESCRIPTION | Three phase pump protection relay (with adjustment /function selection) |
| CONTACT | 16A SPDT |
| PHASE | Three phase |
| RATED CURRENT | 10A |
| RATED VOLTAGE | 250V |
| MECHANICAL LIFE | 10x106 cycles |
| PROTECTION INDEX IP | IP 20 |
| OPERATING TEMPERATURE | -10 to + 50°C |
| STORAGE TEMPERATURE | -50 to + 85°C |
| DIMENSIONS (MM) | (H) 92 x (W) 36 x (D) 64 |
