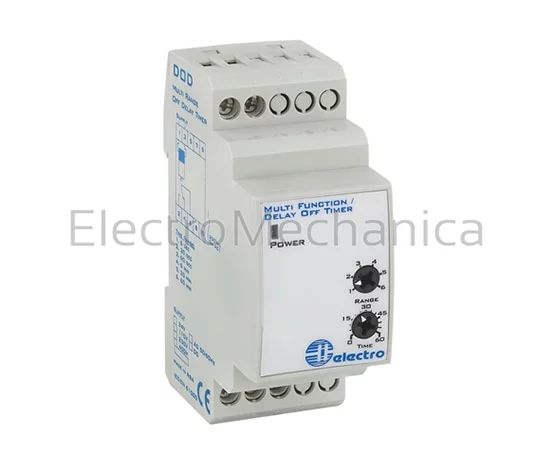

DELAY OFF TIMER 230VAC
DOD230A
R 1 148.85 Incl VAT
(0 reviews)
Online ordering is temporarily unavailable. You can still browse this product or request a spec sheet.
Quantity:
1
Product Details
Category:Timers & Control Relays
Sub category:Modular timing devices
Product code:DOD230A
Type:Inventory Item
RANGE:0.3s-60m
Sub Category:Modular timing devices
Pricing Group:CAT J
CURRENT RATING:10A
SUPPLY VOLTAGE:230VAC
WIDTH IN 17.5MM:2
Detailed Description
True off delay electronic timer
The Electro D range of control and timing devices are compact modular units for easy introduction into standard panels and/or distribution boards. They mount directly onto DIN rail and align with standard miniature circuit breakers (MCB's).
Multi-range off delay (delay on release) timer with advanced backup power circuitry to deliver wide time ranges. DIN rail mountable for front and back panel positioning. The unit has to be powered for no less than 30 sec or 30% of set time range. If permanent power is available the DMFT timer should be used.
Features:
- Delay on de-energisation timer (delay on removal of supply)
| DESCRIPTION | True off delay electronic timer |
| TIME RANGE (NUMBER) | (1) 0.3 - 6s, (2) 0.9 - 30s, (3) 6 - 60s, (4) 0.9 - 6m, (5) 0.3 - 30m, (6) 6 - 60m |
| CONTACT | 8A SPDT |
| RATED CURRENT | 8A |
| RATED VOLTAGE | 250V |
| MECHANICAL LIFE | 10x106 cycles |
| PROTECTION INDEX IP | IP 20 |
| OPERATING TEMPERATURE | -10 to + 50°C |
| STORAGE TEMPERATURE | -50 to + 85°C |
| DIMENSIONS (MM) | (H) 92 x (W) 36 x (D) 64 |
