Monitoring & Drives · Panel-Mount digital meters

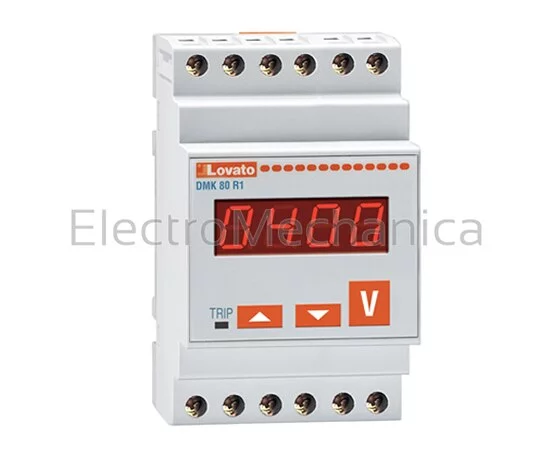

1PH DIG VOLTMETER 15-660VAC RELAY
SKU DMK80R1
R 2 649.60incl. VAT
Quantity:
1
Specifications
- Category
- Monitoring & Drives
- Sub-category
- Panel-Mount digital meters
- Product code
- DMK80R1
- Type
- Inventory Item
- RANGE
- 15-660VAC
- MOUNTING
- DIN
- Sub Category
- Panel-Mount digital meters
- Pricing Group
- CAT E
- NUMBER OF PHASE(S)
- 1
Detailed Description
Digital meters(measuring and monitoring instruments)
DMK modular digital monitoring devices
- Auxiliary supply: 220 - 240 VAC
- 1 changeover relay output (8A 250 VAC)
- Instantaneous or preset trip delays (0 - 900sec)
- Modular DIN rail mounting (3 modules - 54 mm wide)
- Memorises minimum and maximum measured values (since last reset)
Voltage monitors (measures and displays single and three phase voltages)
- Overvoltage range: Off / 102 - 120% (delay 0 - 900sec)
- Undervoltage range: Off / 70 - 98% (delay 0 - 900sec)
- Voltage/phase loss or failure: Off / 5 - 85% (delay 0 - 900sec)
- Programmable PT ratio : 1.00 - 500.00 (accuracy: ±0.25% f.s. ±1digit)
| SERIES | DMK series |
| DESCRIPTION | 1-phase over/under voltage meter/monitor |
| AUXILIARY POWER SUPPLY | 220 - 240 VAC |
| INSTANTANEOUS OR PRESET TRIP DELAYS | 0 - 900 second |
| 1 changeover relay output | 8A 250 VAC |
| MONITORING RANGE | 15 - 660 VAC |
| MOUNTING | Modular DIN rail mounting (3 modules - 54 mm wide) |
