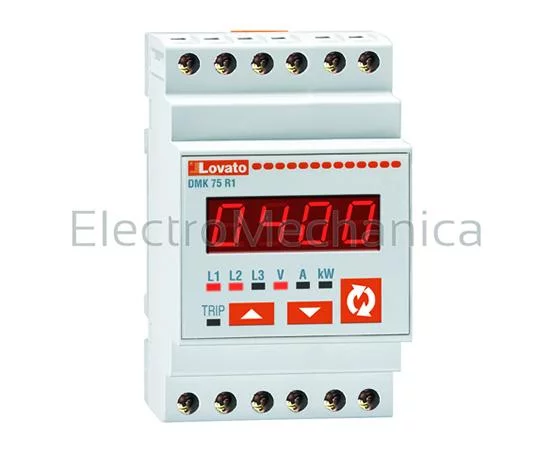

DIGITAL COMBINED MULTIMETER
DMK75R1
R 5 589.00 Incl VAT
(0 reviews)
Online ordering is temporarily unavailable. You can still browse this product or request a spec sheet.
Quantity:
1
Product Details
Category:Monitoring & Drives
Sub category:Panel-Mount digital meters
Product code:DMK75R1
Type:Inventory Item
MOUNTING:DIN
FREQUENCY:45-66Hz
Sub Category:Panel-Mount digital meters
Pricing Group:CAT E
NUMBER OF PHASE(S):3
Detailed Description
Digital meters(measuring and monitoring instruments)
DMK modular digital monitoring devices
- Auxiliary supply: 220 - 240 VAC
- 1 changeover relay output (8A 250 VAC)
- Instantaneous or preset trip delays (0 - 900sec)
- Modular DIN rail mounting (3 modules - 54 mm wide)
- Memorises minimum and maximum measured values (since last reset)
Three-phase multi-measurement instrument
Measurement range:
Voltage:
- Asymmetry: Off / 2 - 20%
- Minimum voltage Off / 70 - 98%
- Maximum voltage: Off / 102 - 120%
- Phase sequence: Off / L1-L2-L3 / L3-L2-L1
- Phase loss or failure: Off / 5 - 85% 35 - 660 VAC
Current:
- Maximum current: Off / 102 - 200%
- Current loss: Off / 2 - 100% 0.05 - 5.75A
- Maximum current instantaneous trip: Off / 110 - 600%
Power:
- Rated power: 1 - 10.000
- Minimum power: Off / 10 - 99%
- Maximum power: Off / 101 - 200%
- Max power instantaneous trip: Off / 110 - 600%
Frequency
- Minimum frequency: Off / 90 - 99%
- Maximum frequency: Off / 101 - 110% 45 - 65Hz
| SERIES | DMK series |
| DESCRIPTION | 3-phase multi measurement digital meter/monitor |
| AUXILIARY POWER SUPPLY | 220 - 240 VAC |
| INSTANTANEOUS OR PRESET TRIP DELAYS | 0 - 900 second |
| 1 changeover relay output | 8A 250 VAC |
| MONITORING RANGE | 45 - 65Hz |
| MOUNTING | Modular DIN rail mounting (3 modules - 54 mm wide) |
