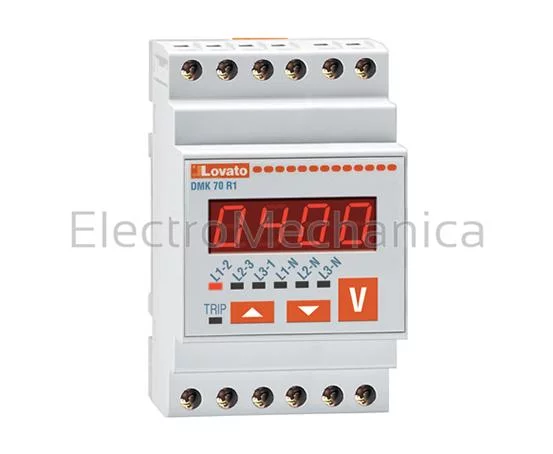

3PH DIG VOLTMETER 15-660VAC RELAY
DMK70R1
R 3 680.00 Incl VAT
(0 reviews)
Online ordering is temporarily unavailable. You can still browse this product or request a spec sheet.
Quantity:
1
Product Details
Category:Monitoring & Drives
Sub category:Panel-Mount digital meters
Product code:DMK70R1
Type:Inventory Item
RANGE:15-660VAC
MOUNTING:DIN
Sub Category:Panel-Mount digital meters
Pricing Group:CAT E
NUMBER OF PHASE(S):3
Detailed Description
Digital meters(measuring and monitoring instruments)
DMK modular digital monitoring devices
- Auxiliary supply: 220 - 240 VAC
- 1 changeover relay output (8A 250 VAC)
- Instantaneous or preset trip delays (0 - 900sec)
- Modular DIN rail mounting (3 modules - 54 mm wide)
- Memorises minimum and maximum measured values (since last reset)
Voltage monitors (measures and displays single and three phase voltages)
- Overvoltage range: Off / 102 - 120% (delay 0 - 900sec)
- Undervoltage range: Off / 70 - 98% (delay 0 - 900sec)
- Voltage/phase loss or failure: Off / 5 - 85% (delay 0 - 900sec)
- Programmable PT ratio : 1.00 - 500.00 (accuracy: ±0.25% f.s. ±1digit)
| SERIES | DMK series |
| DESCRIPTION | 3-phase over/under voltage meter/monitor |
| AUXILIARY POWER SUPPLY | 220 - 240 VAC |
| INSTANTANEOUS OR PRESET TRIP DELAYS | 0 - 900 second |
| 1 changeover relay output | 8A 250 VAC |
| MONITORING RANGE | 15 - 660 VAC |
| MOUNTING | Modular DIN rail mounting (3 modules - 54 mm wide) |
