Monitoring & Drives · Panel-Mount digital meters

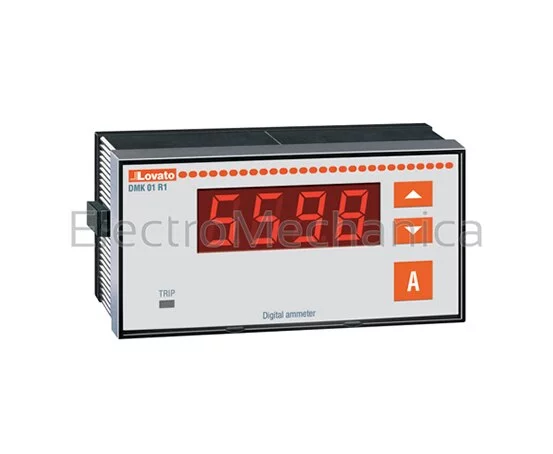

1PH …/5A DIGITAL AMMETER RELAY
SKU DMK01R1
R 2 980.80incl. VAT
Quantity:
1
Specifications
- Category
- Monitoring & Drives
- Sub-category
- Panel-Mount digital meters
- Product code
- DMK01R1
- Type
- Inventory Item
- RANGE
- 0.05A-2.75A
- MOUNTING
- Panel
- Sub Category
- Panel-Mount digital meters
- Pricing Group
- CAT E
- NUMBER OF PHASE(S)
- 1
Detailed Description
Digital panel meters (measuring and monitoring instruments)
- True RMS measurements
- Class 0.5 (±0.25% full scale ± 1 digit)
- 1 changeover relay output 8A 250 VAC 1
- Auxiliary supply 220 - 240 VAC (others on request)
- Memory storage of maximum and minimum values
- Programmable time delay for max, min or voltage/current loss (0 - 900 second)
Ammeters:
- Accuracy: ±0.5% f.s. ±1 digit
- Programmable CT ratio: 5 - 10.000
- Operating frequency range: 45 - 65Hz
- Current measurement range: 0.05 - 5.75A
| SERIES | DMK series |
| DESCRIPTION | Single phase digital current monitor |
| AUXILIARY POWER SUPPLY | 220 - 240 VAC |
| CLASS | 0.5 (±0.25% full scale ± 1 digit) |
| MEMORY | Storage of maximum and minimum values |
| 1 CHANGEOVER RELAY OUTPUT | 8A 250 VAC 1 |
| MOUNTING | Panel mount |
| DIMENSIONS (MM) | (H) 48 x (W) 96 |
| OUTPUT | Relay out |
| MONITORING RANGE | 0.05 - 5.75A |
