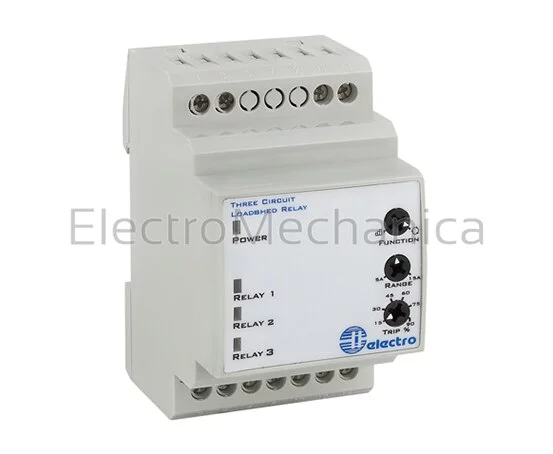

LOAD SHED RELAY 230VAC 16A DIRECT
SKU DLS230A
R 1 067.20incl. VAT
Quantity:
1
Specifications
- Category
- Timers & Control Relays
- Sub-category
- Protection relays & Monitoring devices
- Product code
- DLS230A
- Type
- Inventory Item
- Sub Category
- Protection relays & Monitoring devices
- Pricing Group
- CAT J
- WIDTH IN 17.5MM
- 2
- SWITCHING CURRENT
- 16A
Detailed Description
Load Shed Relay
The Electro D range of control and timing devices are compact modular units for easy introduction into standard panels and/or distribution boards. They mount directly onto DIN rail and align with standard miniature circuit breakers (MCB's).
Load shed relay designed with the latest microcontroller featuring high resolution analogue converter to produce precise switching levels. The unit is designed to monitor current consumption and disconnect non-critical loads from the system.
Features:
- 15 minute response delay
- Modular 35.5mm DIN rail mountable
- High Current 16A SPST output relay
- Front face selectable trip level 5 / 10A
- High resolution analogue microprocessor
- LED indication for relay and power supply ON
| DESCRIPTION | Load shed relay |
| NUMBER OF CIRCUITS | 1 circuit |
| CONTACT | 16A SPDT |
| INPUT | Pin 7 & 9 |
| MEASURING RANGES | 0 - 5 A |
| HYSTERESIS | 0.05 |
| RATED VOLTAGE | 250V |
| MECHANICAL LIFE | 10x106 cycles |
| PROTECTION INDEX IP | IP 20 |
| OPERATING TEMPERATURE | -10 to + 50°C |
| STORAGE TEMPERATURE | -50 to + 85°C |
| DIMENSIONS (MM) | (H) 92 x (W) 36 x (D) 64 |
