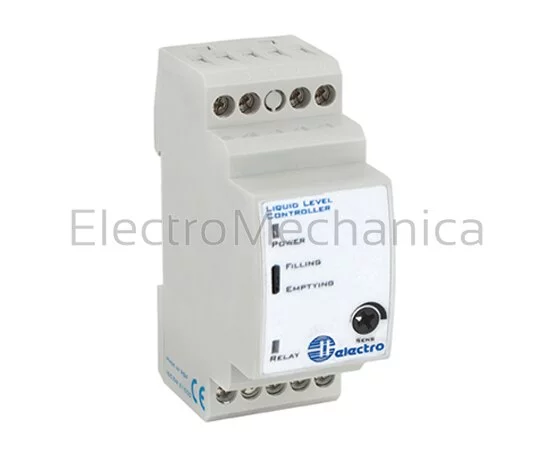

LIQUID LEVEL CONT 2PROBE 24VAC/DC
DLL024AD
R 1 059.15 Incl VAT
(0 reviews)
Online ordering is temporarily unavailable. You can still browse this product or request a spec sheet.
Quantity:
1
Product Details
Category:Timers & Control Relays
Sub category:Protection relays & Monitoring devices
Product code:DLL024AD
Type:Inventory Item
FUNCTIONS:Emptying or filling
Sub Category:Protection relays & Monitoring devices
Pricing Group:CAT J
CURRENT RATING:10A
SUPPLY VOLTAGE:24VAC/DC
WIDTH IN 17.5MM:2
Detailed Description
Liquid Level Timer
Level control relay for conductive liquids selectable for filling and emptying applications with adjustable sensitivity. The unit can be wired for three wire application to control levels between High and Low probe or two wire applications for alarm indication. Filling or emptying can be selected via front slide switch.
Features:
- 10A SPDT output relay
- Microprocessor controlled
- Low voltage AC probe signal
- Front face adjustable sensitivity
- Modular 35.5mm DIN rail mountable
- Front face selection Filling / Emptying
- LED indication for relay and power supply ON
| DESCRIPTION | Liquid level controllers |
| NUMBER OF PROBES | 2 probes + communication |
| FUNCTION | Emptying/ filling |
| CONTACT | 10A SPDT |
| PROBE VOLTAGE | 24 VDC |
| PROBE CURRENT | 2.5 mA |
| PROBE FREQUENCY | 100 Hz |
| RATED CURRENT | 10A |
| RATED VOLTAGE | 250V |
| MECHANICAL LIFE | 10x106 cycles |
| PROTECTION INDEX IP | IP 20 |
| OPERATING TEMPERATURE | -10 to + 50°C |
| STORAGE TEMPERATURE | -50 to + 85°C |
| DIMENSIONS (MM) | (H) 92 x (W) 36 x (D) 64 |
