Timers & Control Relays · Protection relays & Monitoring devices

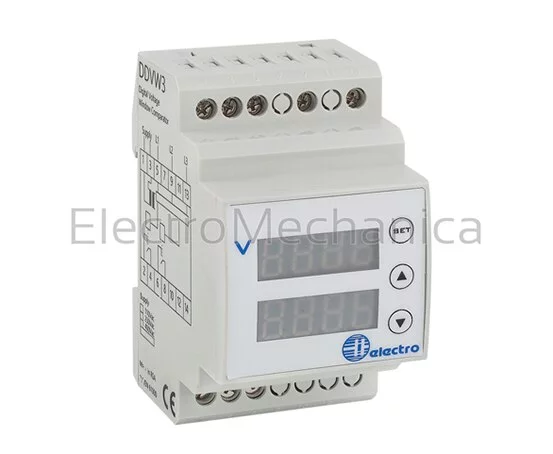

VOLTAGE COMPARATOR 400VAC
SKU DDVW3400A
R 1 757.20incl. VAT
Quantity:
1
Specifications
- Category
- Timers & Control Relays
- Sub-category
- Protection relays & Monitoring devices
- Product code
- DDVW3400A
- Type
- Inventory Item
- RANGE
- 0-9999s
- Sub Category
- Protection relays & Monitoring devices
- Pricing Group
- CAT J
- CURRENT RATING
- 10A
- SUPPLY VOLTAGE
- 400VAC
- WIDTH IN 17.5MM
- 2
Detailed Description
Digital voltage monitor
The Electro D range of control and timing devices are compact modular units for easy introduction into standard panels and/or distribution boards. They mount directly onto DIN rail and align with standard miniature circuit breakers (MCB's).
Multi-function/range digital voltage window comparator timer for monitoring supply voltage between two levels.
Features:
- Separate supply
- Adjustable delays
- Phase reversal on 3 phase units
- 2 relay outputs for individual function
- Over and under voltage and frequency monitoring
| DESCRIPTION | Three phase digital voltage monitor |
| CONTACT | 2 x 6A SPDT |
| PHASE | Three |
| TIME RANGE | 4 time ranges (999.9s - 9999 min) |
| RATED VOLTAGE | 250V |
| MECHANICAL LIFE | 10x106 cycles |
| PROTECTION INDEX IP | IP 20 |
| OPERATING TEMPERATURE | -10 to + 50°C |
| STORAGE TEMPERATURE | -50 to + 85°C |
| DIMENSIONS (MM) | (H) 92 x (W) 36 x (D) 64 |
