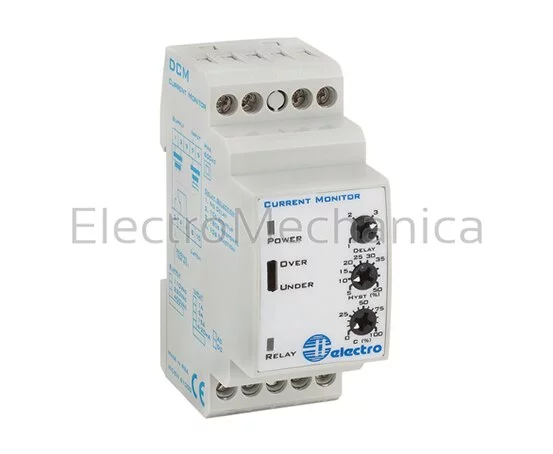

CURRENT MONITOR 5A CT; 230VAC
DCM5230A
Product Details
Detailed Description
Current Monitor
The Electro D range of control and timing devices are compact modular units for easy introduction into standard panels and/or distribution boards. They mount directly onto DIN rail and align with standard miniature circuit breakers (MCB's).
The DCM series is a precise UNDER / OVER current monitoring relay. The unit can be ordered in many AC / DC current ranges, making it ideal for many current monitoring applications. The set point and hysteresis can be adjusted with separate potentiometers. The unit also incorporates a latch facility to prevent undetected failures. For applications which necessitate a CT, all units are supplied with a terminating resistor to prevent open circuit.
Features:
- Optional latch facility
- 10A SPDT output relay
- 4 Front face selectable delays
- Front face adjustable current level
- Modular 35.5mm DIN rail mountable
- Front face adjustable hysteresis 5-50%
- High resolution analogue microprocessor
- Front face selectable Over / Under monitoring
- LED indication for relay and power supply ON
| DESCRIPTION | Current monitor device (can interface with 5A current transformer) |
| CONTACT | 10A SPDT |
| DELAYS | No delay, startup delay 10 second,180 second recovery delay, reaction delay 10 seccond |
| INPUT | Pin 7 & 9 |
| MEASURING RANGES | 0 - 5 A |
| HYSTERESIS | 5 - 50% |
| RATED VOLTAGE | 250V |
| MECHANICAL LIFE | 10x106 cycles |
| PROTECTION INDEX IP | IP 20 |
| OPERATING TEMPERATURE | -10 to + 50°C |
| STORAGE TEMPERATURE | -50 to + 85°C |
| DIMENSIONS (MM) | (H) 92 x (W) 36 x (D) 64 |
