Control And Signaling · Photoelectric sensors

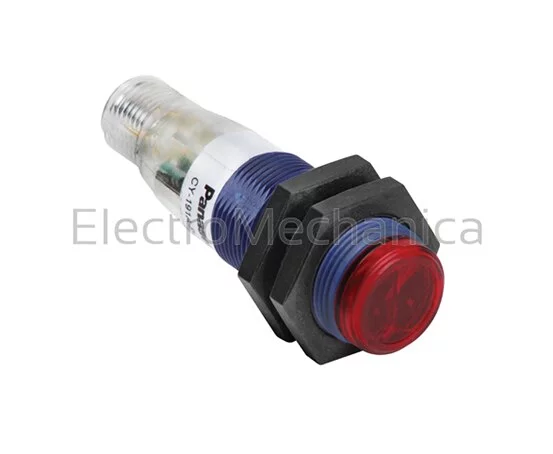

PHOTO SEN PNP POLAR RETRO L-ON 4M
SKU CY-192A-P-Z
Specifications
- Category
- Control And Signaling
- Sub-category
- Photoelectric sensors
- Product code
- CY-192A-P-Z
- Type
- Inventory Item
- SERIES
- CY-100
- CONNECTOR
- M12 plug
- CONNECTION
- M18
- OUTPUT TYPE
- PNP
- SENSOR TYPE
- Retro-reflective
- Sub Category
- Photoelectric sensors
- CONFIGURATION
- NO
- Main Category
- K - Field Switching;Sensing & Safety
- Pricing Group
- CAT K
- SUPPLY VOLTAGE
- 12-24VDC
- SENSING DISTANCE
- 4m
Detailed Description
CY-100 series cylindrical photoelectric sensors
The availability of a wide range of models within the series means the CY-100 sensors can solve relatively complex tasks. One such example is the ability to recognize reflective objects thanks to integrated polarization filters. The side view type makes applications possible in cramped spaces. All models have an M18 male thread for easy and quick mounting. CY-100 series sensors lend themselves to the following kinds of applications, among others: sorting, counting and palletizing while monitoring production and packaging lines, and position and liquid level control of transparent containers in the beverage and filling industry. Moreover, they can also be used to monitor gate control and passages.
Key features:
- Wide product range
- Long sensing range
- M18 thread (included)
- Environmentally robust
| SERIES | CY-100 series |
| DESCRIPTION | Cylindrical photoelectric sensors |
| SENSITIVITY ADJUSTMENT | No |
| SUPPLY VOLTAGE | 12 - 24 VDC |
| DIFFUSED | No |
| RETRO-REFLECTIVE | Yes |
| POLARISED RETRO | No |
| THROUGH-BEAM | No |
| SENSING DISTANCE | 4 meter |
| PNP | Yes |
| NPN | No |
| LIGHT-ON | Yes |
| DARK-ON | No |
| CONNECTOR | M12 (4-pin connector) |
| INDEX PROTECTION | IP67 |
| AMBIENT LIMITS | -25 ... +55 °C |
| HOUSING MATERIAL | PBT (housing), PMMA (lens) |
| SUPPLY PROTECTION | Polarity reversal, Transient, Short circuit |
| LED INDICATION | Power and Operation indication |
| DIMENSIONS (MM) | 18 mm x 60 mm |
