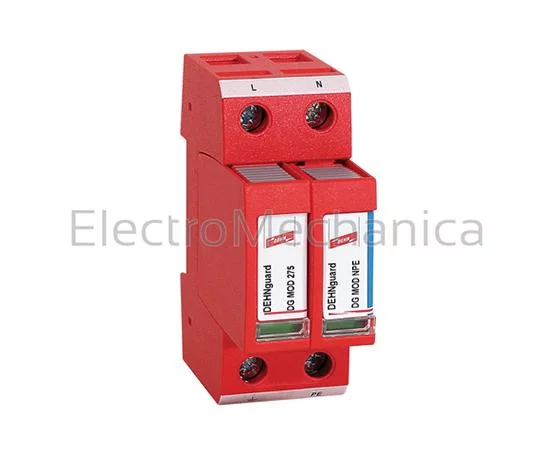

TYPE1+2 12.5kA 255V 2P 1PH+N SPD
941110
R 7 544.00 Incl VAT
(0 reviews)
Online ordering is temporarily unavailable. You can still browse this product or request a spec sheet.
Quantity:
1
Product Details
Category:Power Distribution & Control
Sub category:Surge protection devices
Product code:941110
Type:Inventory Item
Sub Category:Surge protection devices
CONFIGURATION:1PH+N
Pricing Group:CAT B5
8/20 µs (Imax):12.5kA
NUMBER OF POLES:2
WIDTH IN 17.5MM:2
10/350 µs (Iimp):12.5kA
Detailed Description
Surge protection devices
For the protection of low voltage equipment against transient voltage and current surges mainly from atmospheric origin (lightning) and transient produced by switching characteristics such as in switching of distribution networks, transformers, motors, etc.
Features:
- Comply with the IEC 61643-11
- Replaceable plug-in protection modules with visual fault indication
- Type 1+2 combined lightning and surge protection (in a single unit)
- Clamps voltage to less than 1500V as per SANS 10142-1:2008 table L1
- Prewired spark-gap-based type 1 and 2 combined lightning current and surge arrester
| SERIES | DEHNventil |
| DESCRIPTION | Combined lighting and surge protection device |
| TYPE | Class 1 + 2 |
| (10/350 ¼) L-N (LIMP) | 12.5 kA |
| (8/20 ¼) L-N (IMAX) | 12.5 kA |
| MAXIMUM VOLTS L-N (Uc) | 255 V |
| VOLTAGE PROTECTION (Up) | ‰Â¤ 1.5kV |
| NUMBER OF POLES | 2 |
| CONFIGURATION | 1 phase + neutral |
| WIDTH IN 18 (MM) | 2 |
