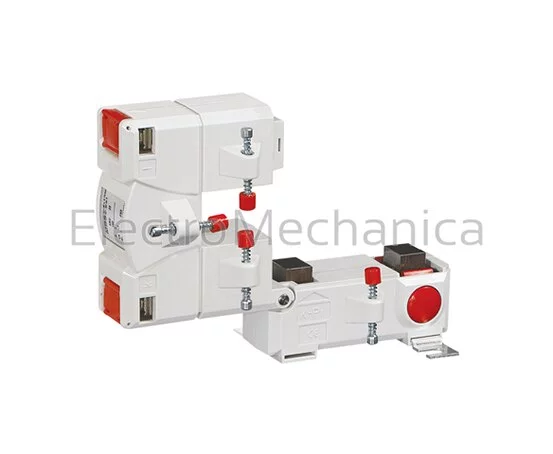

KBU 23 100/5A SPLIT CORE CT cl 3
80048
R 2 691.00 Incl VAT
(0 reviews)
Online ordering is temporarily unavailable. You can still browse this product or request a spec sheet.
Quantity:
1
Product Details
Category:Power Distribution & Control
Sub category:Current transformers
Product code:80048
Type:Inventory Item
RATIO:100/5A
BURDEN:1.25VA
SERIES:KBU 23
DIMENSIONS:Ø20mm
Sub Category:Current transformers
Pricing Group:CAT E
Detailed Description
Splitcore current transformer
The split measuring system facilitates a simple installation into existing panel boards without additional mounting requirements. Simply open the locking mechanism of the current transformer place around the primary conductor and lock ensuring that the circuit is closed. Once the secondary conductors are connected, the unit is ready for operation.
General specifications:
- Isolation class: E
- Maximum operating voltage: Um ‰Â¤ 0.72 kV
- Nominal frequency: 50Hz (others on request)
- Nominal thermal short-time current: Ith = 60 x In
- Over-current limiting factor: FS 5 up to 1500 A nominal current
- MBS AG current transformers conform fully to: DIN VDE 0414/1 - DIN 42600 - DIN EN 60044/1 - VBG 4
KBU 23 split core current transformers (5A secondary - class 1/3)
- Round conductor: Split core
- Primary bar conductor: 20 x 30 mm max.
| MODEL | KBU 23 |
| RATIO | 100/5A |
| ROUND CONDUCTOR | Split core |
| PRIMARY BAR CONDUCTOR | 20 x 50 mm maximum |
| DESCRIPTION | Split-core current transformer |
| DIMENSIONS(MM) | (H)106 X (W)93 X (D)58 |
| CLASS | 3 |
| VA | 1.25 |
| DIMENSIONS (MM) | (H) 106 x (W) 93 x (D) 58 |
