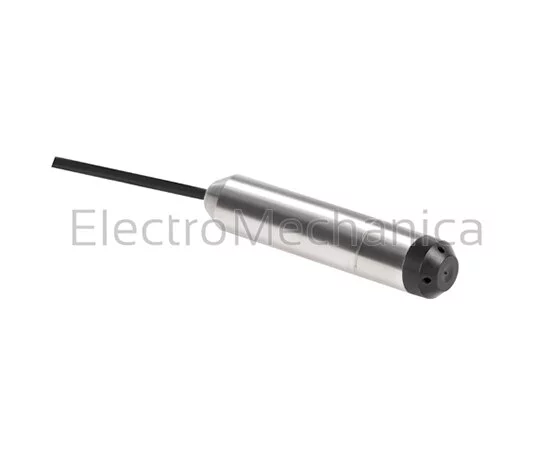

0-0.3 BAR LEVEL PRES T/MITTER 5M
712.913101210
R 11 730.00 Incl VAT
(0 reviews)
Online ordering is temporarily unavailable. You can still browse this product or request a spec sheet.
Quantity:
1
Product Details
Category:Automation
Sub category:Pressure transmitters & Switches
Product code:712.913101210
Type:Inventory Item
HEIGHT:116mm
SERIES:Type 712
DIMENSIONS:Ø23.4mm
Sub Category:Pressure transmitters & Switches
OUTPUT SIGNAL:4-20mA
Pricing Group:CAT K
PRESSURE RANGE:0-0.3 bar
SUPPLY VOLTAGE:10-30VDC
Detailed Description
Type 712 level sensing pressure transmitters
The level sensing pressure transmitter Type 712 is manufactured using an relative or absolute pressure measuring cell with an adjusted and amplified sensor signal and is available with various cable lengths from 2 to 20 meters. The Type 712 offers Ex protection as well as versions with integrated temperature measurement. In addition to voltage and current outputs the Type 712 is available with ratiometric outputs.
Key features:
- Suitable for drinking water
- Suitable for fitting in 1-inch pipe
- With integrated temperature measurement
- Intrinsically safe execution with voltage- and current output
| SERIES | Type 712 |
| MEASURING RANGE (I/m) | 0.0 ... 0.3 |
| POWER SUPPLY | 10 - 30 VDC |
| OUTPUT (DC) | 4 - 20 mA |
| DESCRIPTION | Level sensing presuure transmitter |
| MEDIUM | Liquids (suitable for drinking water) |
| ACCURACY | ± 0.8 % fs |
| MEDIUM TEMPERATURE RANGE | -25 ... +80 °C |
| INDEX PROTECTION IP | IP68 |
| CABLE | PE-HD cable (5 meter) |
| DIMENSIONS (MM) | 23.4 x 116 |
