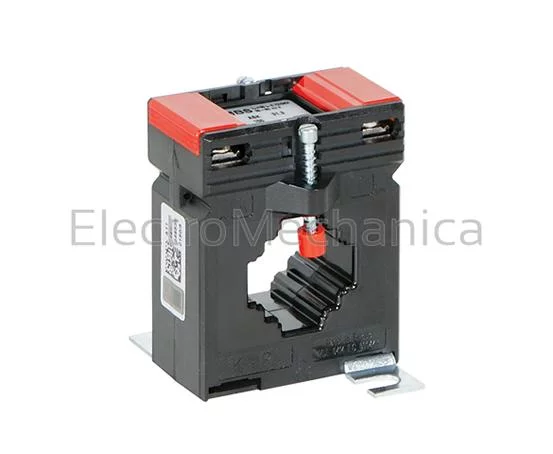

ASK 31.3 100/5A CT cl 1
7045
R 547.40 Incl VAT
(0 reviews)
Online ordering is temporarily unavailable. You can still browse this product or request a spec sheet.
Quantity:
1
Product Details
Category:Power Distribution & Control
Sub category:Current transformers
Product code:7045
Type:Inventory Item
RATIO:100/5A
BURDEN:2.5VA
SERIES:ASK 31.3
DIMENSIONS:Ø26mm
Sub Category:Current transformers
Pricing Group:CAT E
Detailed Description
Current transformers
General specifications:
- Isolation class: E
- Maximum operating voltage: Um ‰Â¤ 0.72 kV
- Nominal frequency: 50Hz (others on request)
- Nominal thermal short-time current: Ith = 60 x In
- Over-current limiting factor: FS 5 up to 1500 A nominal current
- MBS AG current transformers conform fully to: DIN VDE 0414/1 - DIN 42600 - IEC 61869/1+2 - VBG 4
Busbar mounted current transformers (5A secondary - class 1)
ASK 31.3 current transformers
| MODEL | ASK 31.3 |
| RATIO | 100/5A |
| ROUND CONDUCTOR (⌀) | 26 mm |
| PRIMARY BAR CONDUCTOR | 30 X 10 / 20 X 20 mm |
| DESCRIPTION | Standard current transformer |
| CLASS | 1 |
| VA | 2.5 |
| DIMENSIONS (MM) | (H) 76 x (W) 61 x (D) 48 |
