Automation · Pressure transmitters & Switches

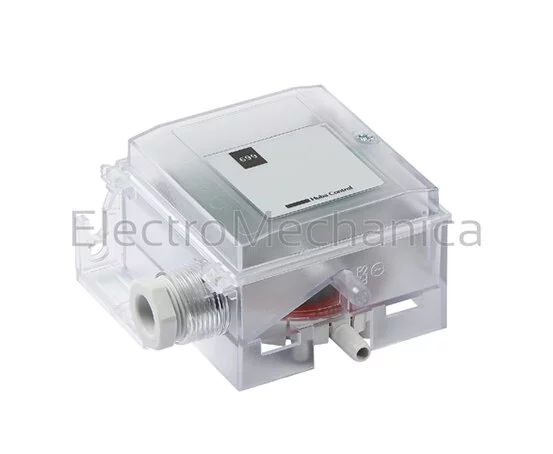

4-20 mA PRESSURE TRANSMITTER
SKU 699.931014010
R 3 054.40incl. VAT
Quantity:
1
Specifications
- Category
- Automation
- Sub-category
- Pressure transmitters & Switches
- Product code
- 699.931014010
- Type
- Inventory Item
- DEPTH
- 47.9mm
- WIDTH
- 92mm
- HEIGHT
- 75mm
- SERIES
- Type 699
- Sub Category
- Pressure transmitters & Switches
- OUTPUT SIGNAL
- 4-20mA
- Pricing Group
- CAT K
- PRESSURE RANGE
- Multi-range
- SUPPLY VOLTAGE
- 13.5-33VDC
Detailed Description
TYPE 699 differential pressure transmitters
The type 699 transmitters are available in switchable pressure ranges and with or without display. The full-version includes customer specific adjustment possibilities. Especially developed sensors for each pressure range ensure accurate long term stable measurement and the large variety of options provide the perfect platform for use in air conditioning technology as well as for fine measurement in the industrial and medical environment.
Key features:
- Full scale adjustable
- Switchable output signals
- Adjustable measurement range
- Resettable Zero Point (reset button)
- Switchable response curve (linear or root-extracted)
- Fast, easy mounting (housing incorporates integral wall or ceiling mount bracket)
Application fields:
- Check air flows
- Monitor filters and fan systems
- Pressure supervision in labs, production, storage and clean rooms
- Measuring slightest differential pressures in ventilation and air conditioning ducts
| SERIES | Type 699 |
| PRESSURE RANGE (MBAR) | 0.3 / 0.5 / 1 |
| SUPPLY (VDC) | 13.5 - 33 |
| OUTPUT (DC) | 4 - 20 mA |
| ELECTRICAL CONNECTION | screw terminal |
| DESCRIPTION | Differential pressure transmitter |
| PRESSURE CONNECTION | 6.2 mm |
| DISPLAY | No display |
| MEDIUM | Air and neutral gases |
| RESPONSE TIME | < 20 ms |
| TEMPERATURE RANGE | 0 ... +70 °C |
| INDEX PROTECTION IP | IP54 according to EN 60529 |
| STANDARD OF CONFORMITY | EN 61326-1, UL 60730-1, UL 60730-2-6 |
| DIMENSIONS (MM) | (H) 75 x (W) 92 x (D) 47.9 |
