Automation · Pressure transmitters & Switches

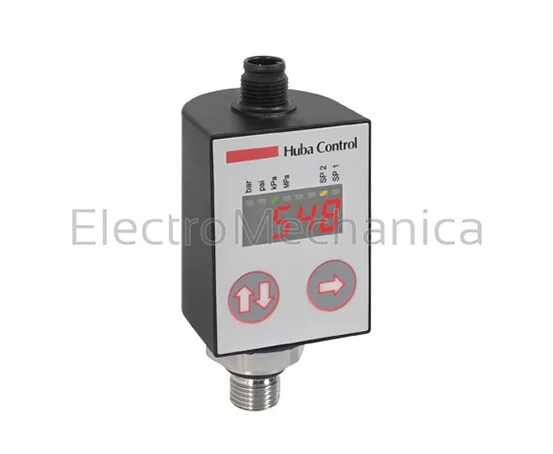

0-40 BAR PRESS T/MITTER-M12 G1/4"
SKU 548.9330152401
R 5 713.20incl. VAT
Quantity:
1
Specifications
- Category
- Automation
- Sub-category
- Pressure transmitters & Switches
- Product code
- 548.9330152401
- Type
- Inventory Item
- SERIES
- 548
- IP RATING
- IP67
- MEDIUM TYPE
- Liquid and gas
- Sub Category
- Pressure transmitters & Switches
- CONFIGURATION
- PNP
- OUTPUT SIGNAL
- 4-20mA
- Pricing Group
- CAT K
- PRESSURE RANGE
- 0-40 bar
- SUPPLY VOLTAGE
- 17-33VDC
Detailed Description
Type 548 electronic programmable pressure switch
The type 548 ¼P-regulated, programmable pressure transmitter has a robust industry design, easily adjustable parameters (via function keys in the configuration menu) with up to two programmable switching points. All units are equipped with a large 4 digit display assuring reliable accurate readings.
General features:
- 1 x Analog signal output
- 2 x programmable switching outputs No or NC (200 mA)
- Compact, rugged construction €¢ High over pressure capability
- Programmable time delay functions rise and switch off delay 0 - 50 s, response time 5 ...500 ms
- Clearly readable display (rotatable 180°) - 7 segment LED, 4 digits for pressure and parameter values
| SERIES | Type 548 |
| PRESSURE RANGE (MBAR) | 0 ... 40 |
| PRESSURE RANGE (PA) | 7 - 33 VDC |
| SWITCH | 4 - 20 mA |
| ELECTRICAL CONNECTION | M12x1 PNP |
| DESCRIPTION | Transmitter |
| PRESSURE CONNECTION | G 1/4 |
| INDEX PROTECTION IP | IP67 |
| MEDIUM | Liquids and gases -20 ... +80 °C |
| RESPONSE TIME | < 5 ms |
| DIMENSIONS (MM) | (H) 73 x (W) 41 x (D) 42 |
| ACCURACY | ± 0.3 % fs |
| OVERLOAD | ‰Â¤ 10 BAR 4 x fs |
| CONFORMITY | EN 61326-2-3 / IEC 68-2-27 / IEC 68-2-6 |
