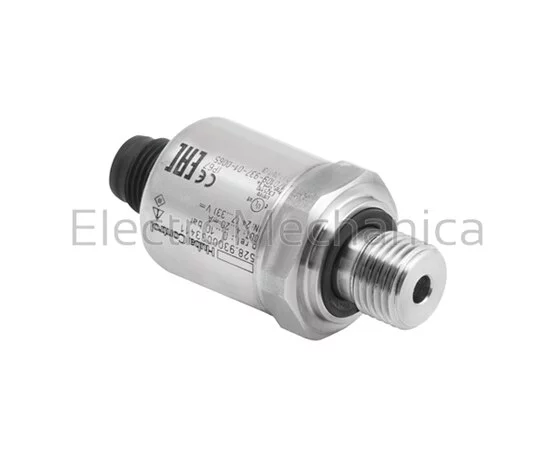

PRESS. TRANSMITTER - M12 G1/4"
528.9320033411
R 2 461.00 Incl VAT
(0 reviews)
Online ordering is temporarily unavailable. You can still browse this product or request a spec sheet.
Quantity:
1
Product Details
Category:Automation
Sub category:Pressure transmitters & Switches
Product code:528.9320033411
Type:Inventory Item
HEIGHT:40.9mm
SERIES:Type 528
DIMENSIONS:Ø24mm
Sub Category:Pressure transmitters & Switches
OUTPUT SIGNAL:4-20mA
Pricing Group:CAT K
PRESSURE RANGE:0-25 bar
SUPPLY VOLTAGE:7-33VDC
Detailed Description
528 pressure transmitters/sensors
The compact type 528 pressure transmitter is based upon the well proven ceramic technology developed by Huba Control over 20 years ago. These pressure transmitters are suitable for applications across a broad spectrum of industries.
General features:
- Compact, rugged construction
- Large selection of connections available
- Negligible temperature influence on accuracy
- Saving time by quick cable mounting by the customer with swift connector
| SERIES | Type 528 |
| PRESSURE RANGE | 0 ... 25 |
| POWER SUPPLY | 7 - 33 VDC |
| OUTPUT DC | 4 - 20 mA |
| ELECTRICAL CONNECTION | M12x1 |
| DESCRIPTION | Pressure transmitter |
| PRESSURE CONNECTION | G 1/4 |
| INDEX PROTECTION IP | IP67 |
| ACCURACY | ± 0.3 % fs |
| MEDIUM TEMPERATURE RANGE | -15 ... +125 °C |
| RESPONSE TIME | < 2 ms, (1 ms typical) |
| MATERIAL | Connection stainless steel 1.4404 / AISI 316L |
| DIMENSIONS (MM) | 24 x 40.9 mm |
| CONFORMITY | EN 61326-2-3 / IEC 68-2-27 / IEC 68-2-29 / IEC 68-2-6 / UL E325110 |
