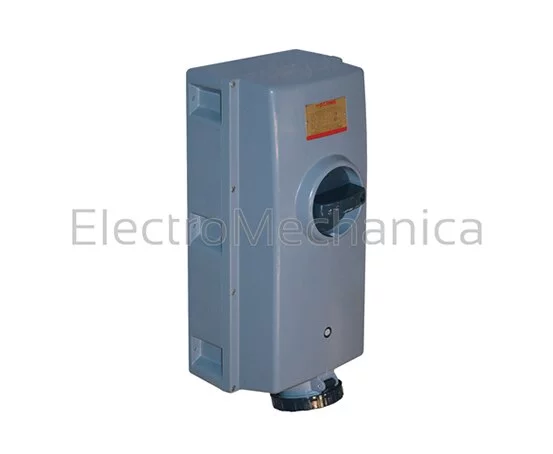

125A 3P+E IP67 H/D SURF SW/SOCKET
503.12586-01
R 27 830.00 Incl VAT
(0 reviews)
Online ordering is temporarily unavailable. You can still browse this product or request a spec sheet.
Quantity:
1
Product Details
Category:Power Distribution & Control
Sub category:Industrial socket outlets
Product code:503.12586-01
Type:Inventory Item
SERIES:Advance GRP
MOUNTING:Surface mount
IP RATING:IP67
Sub Category:Industrial socket outlets
CONFIGURATION:3P+E
HOUR POSITION:6h
Pricing Group:CAT I
VOLTAGE RANGE:380-480V
CURRENT RATING:125A
NUMBER OF PINS:4pin
Detailed Description
Advance-GRP extra heavy duty interlocked switch socket outlet 16 - 125A
The ADVANCE GRP product line includes a series of 16A, 32A, 63A, 125A interlocked sockets (compliant with EN60309-4 standards) and the casings to contain them. It's the most complete range of interlocked sockets produced in GRP (Glass Reinforced Polyester) thermosetting material
Key features:
- Outstanding impact resistance
- Resistance to chemical agents
- Resistance to atmospheric agents
- Outstanding heat and fire resistance
| SERIES | ADVANCE GRP |
| AMPERAGE | 125A |
| INSULATED VOLTAGE | 690 VAC |
| OPERATING TEMPERATURE | -25 - +40°C (max operating temperature +60°C) |
| GLOW WIRE TEST | test: 960°C - UL94 V0 |
| MATERIAL | Thermosetting (halogen free) RAL 7037 |
| NUMBER OF POLES | 3P+E |
| IMPACT RESISTANCE | IK10 (5kg with a striking energy of 20J) |
| PIN CONFIGURATION | 4pin |
| INDEX PROTECTION IP | IP67 |
| DESCRIPTION | Heavy duty switch socket outlet |
| MECHANICAL INTERLOCKED | Only operates with plug inserted, plug only removable with switch off |
| EX CLASSIFICATION | Atex code Ex II 2Dprotection type Ex tD A21 IP66 T 90°C |
| LED INDICATION | Correct supply and all phases present |
| DIMENSIONS (MM) | (H)575 x (W)280 x (D)253 |
