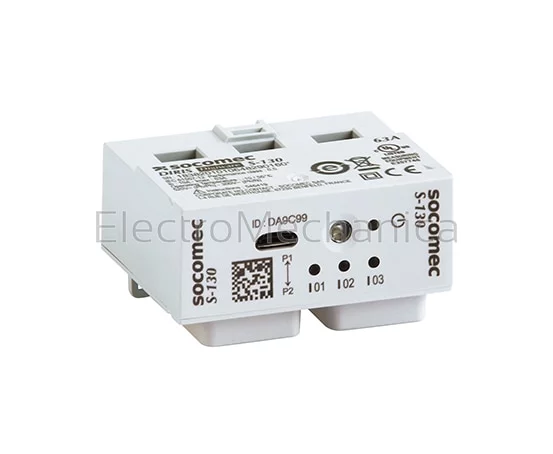

DIGIWARE S-130 CURRENT METER MOD

DIRIS Digiware

The DIRIS Digiware is a multi-circuit power monitoring device that is the most effective solution for metering consumption. Measuring and monitoring the quality of electrical energy in industrial and commercial applications.

Features:

• Accuracy as per standard IEC 61557-12 (Class 0.5)
• Implementation in a quarter of the time vs existing metering technologies
• Installation of measurement modules and current sensors at the closest point to the load
• Can monitor several circuits via a single current measurement module thanks to independent current inputs
• Compact and flexible design: suitable for new and existing installations including panels with space restrictions

DIRIS Digiware S - Current measurement modules

DIRIS Digiware S is a power metering and monitoring service with 3 integrated current sensors enabling the measurement of one three-phase or three single-phase circuits up to 63 A.

• Metering: ± kWh, ± kvarh, kVAh
• Can be mounted upstream or downstream of the protective device
• Advanced monitoring via VirtualMonitor (position, trip etc. without using auxiliary)
• Matching the pitch of protective devices up to 63 A, solving issues of space constraints
