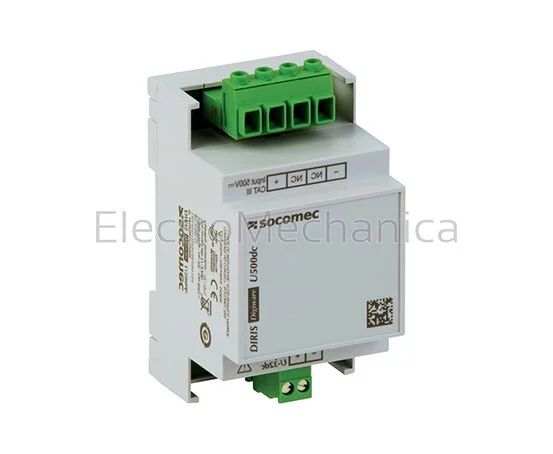

U-500dc V/METER MOD 200-600VDC

DIRIS DC Digiware

The DIRIS Digiware is a multi-circuit power monitoring device that is the most effective solution for metering consumption. Measuring and monitoring the quality of electrical energy in industrial and commercial applications.

DIRIS Digiware U-31/32dc module measures DC voltage for the entire system. It measures up to 180 VDC with a direct connection and is therefore compatible with typical nominal voltages (24 VDC, 48 VDC..)

Features:

• Accuracy as per standard IEC 61557-12 (Class 0.5)
• Implementation in a quarter of the time vs existing metering technologies
• Installation of measurement modules and current sensors at the closest point to the load
• Can monitor several circuits via a single current measurement module thanks to independent current inputs
• Compact and flexible design: suitable for new and existing installations including panels with space restrictions

Voltage measurement modules:

• Voltage measurement accuracy: Class 0.5
• 1 single voltage measurement point for the entire system.
• Voltage adaptors makes the system compatible with all voltage levels up to 1650 VDC
• A complete,dedicated solution for : metering,voltage monitoring,quality analysis of the voltage
• RJ45 bus allows you measurement of voltage as well as supply power to all connected devices

DC voltage adaptor
