A10 M/FUNC METER RAIL MNT+RS485

DIRIS multi-function meters (PMD)

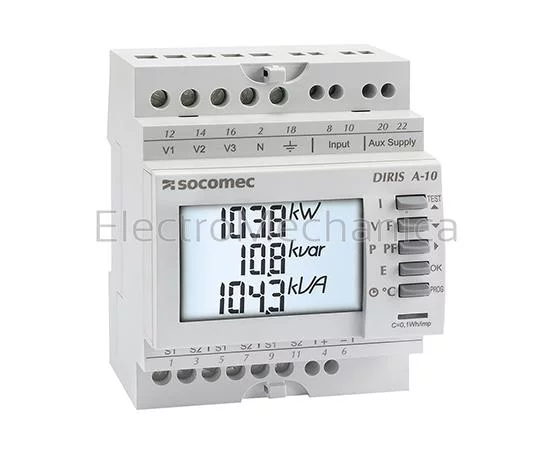

DIRIS A10 multi-function meter

The DIRIS A10 is a modular multifunction meter for measuring electrical values in low voltage networks. It allows all electrical parameters to be displayed and utilised for communication and/ or output functions. Compact and ergonomic, the DIRIS multifunction meter specially adapted for monitoring and managing electrical energy. Its communication function allows the analysis of data collected via a PLC energy management software.

Features:

• Dual tariff selection
• Integrated temperature sensor
• Harmonic analysis up to (level 51)
• Dimensions: 72 x 90 mm x 64 mm deep
• Detects wiring errors to automatically correct CT installation errors
• Navigation is via 5 direct access keys and easy to read screen display
• RS485: Communication permits the extraction of data and device configuration remotely
• Compliant: IEC61557-12 high-level standard for all PMDs (Performance Monitoring Devices)
• Ease of use: Permits easy navigation via direct keys and easy to read backlit LCD screen display
• Compact: Panel or Din rail mount options enables easy integration into any type of electrical cabinet
• Advanced: Programmable input and output as standard including pulse metering, alarm report and pulse output
