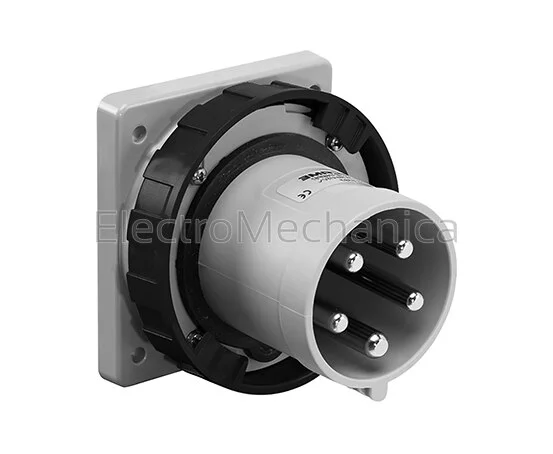

63A 3P+N+E IP67 FLU. APP INLET 7h
SKU 248.63976
R 1 214.40incl. VAT
Quantity:
1
Specifications
- Category
- Power Distribution & Control
- Sub-category
- Industrial plugs & Sockets
- Product code
- 248.63976
- Type
- Inventory Item
- SERIES
- Optima
- MOUNTING
- Flush mount
- IP RATING
- IP67/8/9
- Sub Category
- Industrial plugs & Sockets
- CONFIGURATION
- 3P+N+E
- HOUR POSITION
- 7h
- Pricing Group
- CAT I
- VOLTAGE RANGE
- 480-525V
- CURRENT RATING
- 63A
- NUMBER OF PINS
- 5pin
Detailed Description
Industrial plugs and sockets
Optima series Appliance inlets (male pins - accept female connector)
- Insulation voltage: 690 VAC
- Standards: IEC 60309-2
- Material: Thermoplastic (halogen free)
- Impact resistance: IK08 (1.7kg with a striking energy of 2J)
- Operating temperature: -25 mm +40°C (max operating temperature +60°C)
- Cable inlet: External cable stay with tulip clamping IP67 gland
Flush mount appliance inlet (straight inlet)
| SERIES | OPTIMA |
| AMPERAGE | 63A |
| INSULATED VOLTAGE | 690 VAC |
| OPERATING TEMPERATURE | -25 - +40°C (max operating temperature +60°C) |
| GLOW WIRE TEST | 650/850°C |
| MATERIAL | Engineering plastic (halogen free) |
| NUMBER OF POLES | 3P+N+E |
| IMPACT RESISTANCE | IK08 (1.7kg with a striking energy of 2J) |
| PIN CONFIGURATION | 5pin |
| INDEX PROTECTION IP | IP67/8/9 |
| DESCRIPTION | Appliance inlet |
| FLANGE SIZE | 100 x 110 |
