125A 3P+E IP67 FLUSH APP INLET 7h
SKU 248.125966
R 1 950.40incl. VAT
Quantity:
1
Specifications
- Category
- Power Distribution & Control
- Sub-category
- Industrial plugs & Sockets
- Product code
- 248.125966
- Type
- Inventory Item
- SERIES
- Optima
- MOUNTING
- Flush mount
- IP RATING
- IP67/8/9
- Sub Category
- Industrial plugs & Sockets
- CONFIGURATION
- 3P+E
- HOUR POSITION
- 7h
- Pricing Group
- CAT I
- VOLTAGE RANGE
- 480-525V
- CURRENT RATING
- 125A
- NUMBER OF PINS
- 4pin
Detailed Description
Industrial plugs and sockets
Optima series Appliance inlets (male pins - accept female connector)
- Insulation voltage: 690 VAC
- Standards: IEC 60309-2
- Material: Thermoplastic (halogen free)
- Impact resistance: IK08 (1.7kg with a striking energy of 2J)
- Operating temperature: -25 mm +40°C (max operating temperature +60°C)
- Cable inlet: External cable stay with tulip clamping IP67 gland

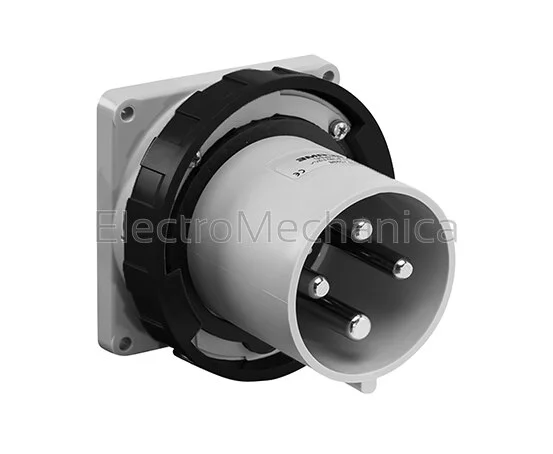

Flush mount appliance inlet (straight inlet)
| SERIES | OPTIMA |
| AMPERAGE | 125A |
| INSULATED VOLTAGE | 690 VAC |
| OPERATING TEMPERATURE | -25 - +40°C (max operating temperature +60°C) |
| GLOW WIRE TEST | 650/850°C |
| MATERIAL | Engineering plastic (halogen free) |
| NUMBER OF POLES | 3P+E |
| IMPACT RESISTANCE | IK08 (1.7kg with a striking energy of 2J) |
| PIN CONFIGURATION | 4pin |
| INDEX PROTECTION IP | IP67/8/9 |
| DESCRIPTION | Appliance inlet |
| FLANGE SIZE | 114 x 114 |
