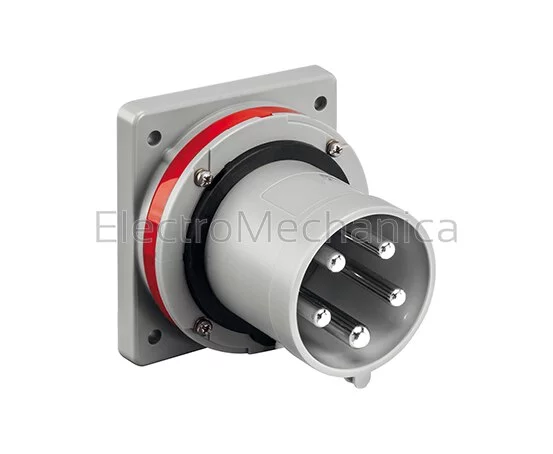

63A 3P+E IP54 FLUSH MNT APP INLET
243.6396
R 1 056.85 Incl VAT
(0 reviews)
Online ordering is temporarily unavailable. You can still browse this product or request a spec sheet.
Quantity:
1
Product Details
Category:Power Distribution & Control
Sub category:Industrial plugs & Sockets
Product code:243.6396
Type:Inventory Item
SERIES:Optima
MOUNTING:Flush mount
IP RATING:IP44/54
Sub Category:Industrial plugs & Sockets
CONFIGURATION:3P+E
HOUR POSITION:6h
Pricing Group:CAT I
VOLTAGE RANGE:380-480V
CURRENT RATING:63A
NUMBER OF PINS:4pin
Detailed Description
Industrial plugs and sockets
Optima series Appliance inlets (male pins - accept female connector)
- Insulation voltage: 690 VAC
- Standards: IEC 60309-2
- Material: Thermoplastic (halogen free)
- Impact resistance: IK08 (1.7kg with a striking energy of 2J)
- Operating temperature: -25 mm +40°C (max operating temperature +60°C)
- Cable inlet: External cable stay with tulip clamping IP67 gland
Flush mount appliance inlet (straight inlet)
| SERIES | OPTIMA |
| AMPERAGE | 63A |
| INSULATED VOLTAGE | 690 VAC |
| OPERATING TEMPERATURE | -25 - +40°C (max operating temperature +60°C) |
| GLOW WIRE TEST | 650/850°C |
| MATERIAL | Engineering plastic (halogen free) |
| NUMBER OF POLES | 3P+E |
| IMPACT RESISTANCE | IK08 (1.7kg with a striking energy of 2J) |
| PIN CONFIGURATION | 4pin |
| INDEX PROTECTION IP | IP44/54 |
| DESCRIPTION | Appliance inlet |
| FLANGE SIZE | 75 x 75 |
