ASK 103.3 2500/1A CT cl 1
23266
R 1 403.00 Incl VAT
(0 reviews)
Online ordering is temporarily unavailable. You can still browse this product or request a spec sheet.
Quantity:
1
Product Details
Category:Power Distribution & Control
Sub category:Current transformers
Product code:23266
Type:Inventory Item
RATIO:2500/1A
BURDEN:30VA
SERIES:ASK 103.3
DIMENSIONS:Ø85mm
Sub Category:Current transformers
Pricing Group:CAT E
Detailed Description
Current transformers
General specifications:
- Isolation class: E
- Maximum operating voltage: Um ‰Â¤ 0.72 kV
- Nominal frequency: 50Hz (others on request)
- Nominal thermal short-time current: Ith = 60 x In
- Over-current limiting factor: FS 5 up to 1500 A nominal current
- MBS AG current transformers conform fully to: DIN VDE 0414/1 - DIN 42600 - IEC 61869/1+2 - VBG 4
Standard current transformers (1A secondary - class 1)

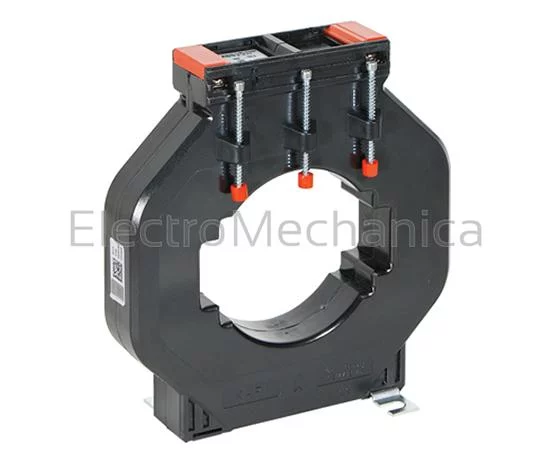

ASK 103.3 plug-in current transformers
| MODEL | ASK 103.3 |
| RATIO | 2500/1A |
| ROUND CONDUCTOR (⌀) | 85 mm |
| PRIMARY BAR CONDUCTOR | 100 X 30 / 80 X 50 mm |
| DESCRIPTION | Standard current transformer |
| CLASS | 1 |
| VA | 30 |
| DIMENSIONS (MM) | (H) 188 x (W) 172 x (D) 35 |
