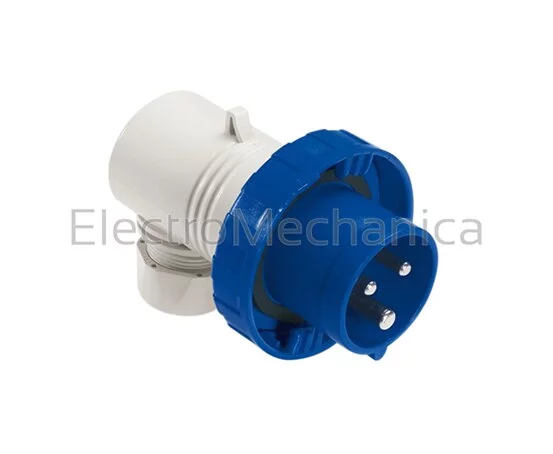

16A 2P+E IP67 ANGLED PLUG
226.1633
R 264.50 Incl VAT
(0 reviews)
Online ordering is temporarily unavailable. You can still browse this product or request a spec sheet.
Quantity:
1
Product Details
Category:Power Distribution & Control
Sub category:Industrial plugs & Sockets
Product code:226.1633
Type:Inventory Item
SERIES:Eureka
IP RATING:IP67
Sub Category:Industrial plugs & Sockets
CONFIGURATION:2P+E
HOUR POSITION:6h
Pricing Group:CAT I
VOLTAGE RANGE:200-250V
CURRENT RATING:16A
NUMBER OF PINS:3pin
Detailed Description
Industrial plugs and sockets
Eureka series(male plugs - 90° cable exit)
Eureka Series industrial plugs and sockets are designed for cable-end or stationary connection of electrical equipment
Features:
- Colour-coded for fast identification of the rated voltage
- Patented technical features allow quick and easy cabling.
- High resistance to harmful agents such as water, dirt, grease, chemicals.
- Different contact configurations ensure prevention of connecting devices of different rated voltages.
- High degree of protection against the ingress of solid matter or water through the use of improved sealing methods.
- High degree of protection against harmful contacts since the earthing contact is the first to be established and the last to be broken.
| SERIES | EUREKA |
| AMPERAGE | 16A |
| INSULATED VOLTAGE | 690 VAC |
| OPERATING TEMPERATURE | -25 - +40°C (max operating temperature +60°C) |
| GLOW WIRE TEST | 650/850°C |
| MATERIAL | Engineering plastic (halogen free) |
| NUMBER OF POLES | 2P+E |
| IMPACT RESISTANCE | IK07 (0.5kg with a striking energy of 2J) |
| PIN CONFIGURATION | 3pin |
| INDEX PROTECTION IP | IP67 |
| DESCRIPTION | Male plug |
| CABLE OUTLET | 90° |
| CABLE INLET | External cable stay with tulip clamping IP67 gland |
