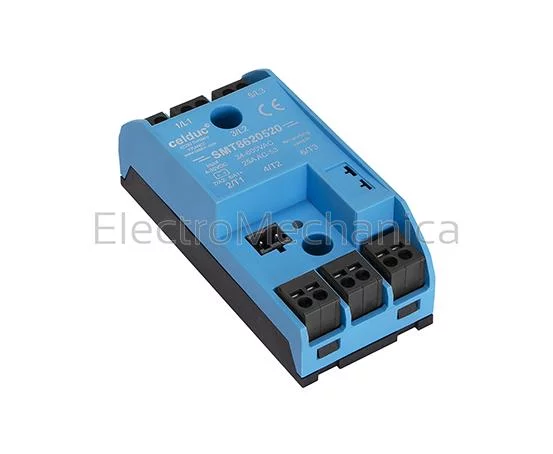

3X20A 24-520VAC 3 PHASE SS RELAY
SMT8620520
R 2 921.00 Incl VAT
(0 reviews)
Online ordering is temporarily unavailable. You can still browse this product or request a spec sheet.
Quantity:
1
Product Details
Category:Timers & Control Relays
Sub category:Solid-state relays
Product code:SMT8620520
Type:Inventory Item
DEPTH:48mm
WIDTH:45mm
HEIGHT:100mm
SERIES:SMT
Sub Category:Solid-state relays
Pricing Group:CAT J
CONTROL VOLTAGE:4-30VDC
THYRISTOR RATING:20A
SWITCHING VOLTAGE:24-520VAC
Detailed Description
Sightpac series - Three phase Solid State Relays
All three-phase solid state relays incorporate new high efficiency back to back thyristors on output with TMS²technology for a long lifetime expectancy and high surge currents. Designed for controlling three-wire three-phase loads connected in star or delta (if balanced without neutral). Two of the three phases are switched by the SSR and the third being directly connected.
General features:
- Control status LED
- Designed for resistive loads
- Conforms to: IEC/EN 60947-4-3, CEI 62314, UL-cUL
- Three phase zero cross solid state relay with one direct connected phase
SMT series - Three phase Solid State Relay
General features:
- For controlling three-wire three-phase loads
- Three phase Zero Cross Solid State relay (SSR) designed for most load types
- Plug-in control terminals and spring clamp power terminals
| SERIES | SMT series |
| DESCRIPTION | Three phase solid state relay |
| MAXIMUM THYRISTOR RATING | 3 x 25A |
| SWITCHING CURRENT | 3 x 20A |
| SWITCHING VOLTAGE | 24 - 520 VAC |
| PEAK VOLTAGE | 1200V |
| CONTROL VOLTAGE | 4 - 30 VDC |
| DIMENSIONS (MM) | (H) 100 x (W) 76.5 x (D) 35.5 |
