Timers & Control Relays · Solid-state relays

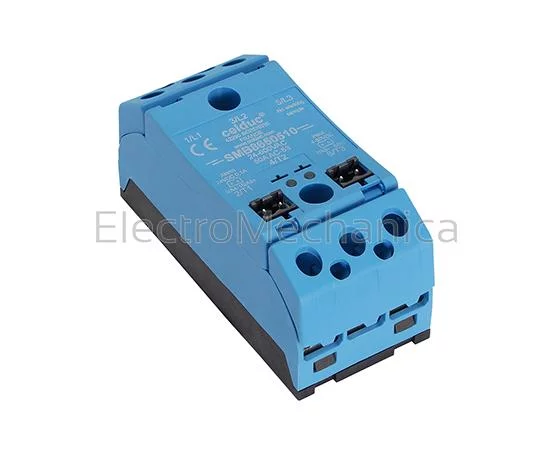

3X30A 24-520VAC 3PHASE SS RELAY
SKU SMB8650510
Specifications
- Category
- Timers & Control Relays
- Sub-category
- Solid-state relays
- Product code
- SMB8650510
- Type
- Inventory Item
- DEPTH
- 48mm
- WIDTH
- 45mm
- HEIGHT
- 100mm
- SERIES
- SMB
- Sub Category
- Solid-state relays
- Pricing Group
- CAT J
- CONTROL VOLTAGE
- 4-30VDC
- THYRISTOR RATING
- 30A
- SWITCHING VOLTAGE
- 24-520VAC
Detailed Description
Sightpac series - Three phase Solid State Relays
All three-phase solid state relays incorporate new high efficiency back to back thyristors on output with TMS²technology for a long lifetime expectancy and high surge currents. Designed for controlling three-wire three-phase loads connected in star or delta (if balanced without neutral). Two of the three phases are switched by the SSR and the third being directly connected.
General features:
- Control status LED
- Designed for resistive loads
- Conforms to: IEC/EN 60947-4-3, CEI 62314, UL-cUL
- Three phase zero cross solid state relay with one direct connected phase
SMB series two leg 3 phase Solid State Relay
Designed for controlling three-phase loads connected in star or delta (if balanced). Two of the three phases are switched by the SSR the third phase being directly connected
- Three phase Zero Cross Solid State relay with one direct connected phase
- Designed for resistive loads
| SERIES | SMB series |
| DESCRIPTION | Three phase solid state relay |
| MAXIMUM THYRISTOR RATING | 2 x 50A |
| SWITCHING CURRENT | 3 x 30A |
| SWITCHING VOLTAGE | 24 - 520 VAC |
| PEAK VOLTAGE | 1600V |
| CONTROL VOLTAGE | 4 - 30 VDC |
| DIMENSIONS (MM) | (H) 100 x (W) 76.5 x (D) 35.5 |
