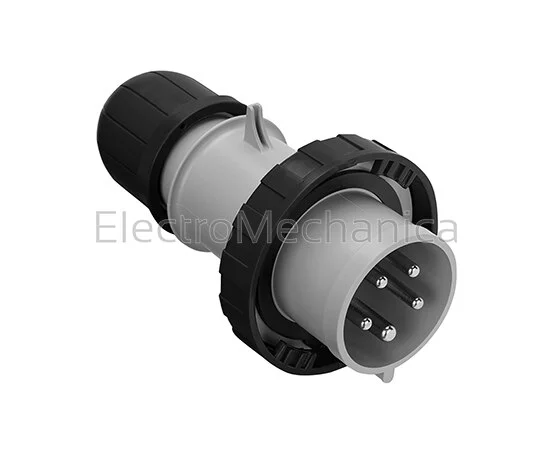

125A 3P+N+E IP67 MALE PLUG (7h)
218.125376
R 3 243.00 Incl VAT
(0 reviews)
Online ordering is temporarily unavailable. You can still browse this product or request a spec sheet.
Quantity:
1
Product Details
Category:Power Distribution & Control
Sub category:Industrial plugs & Sockets
Product code:218.125376
Type:Inventory Item
SERIES:Optima
IP RATING:IP67/8/9
Sub Category:Industrial plugs & Sockets
CONFIGURATION:3P+N+E
HOUR POSITION:7h
Pricing Group:CAT I
VOLTAGE RANGE:480-525V
CURRENT RATING:125A
NUMBER OF PINS:5pin
Detailed Description
Industrial plugs and sockets
Optima series
- Insulation voltage: 690 VAC
- Standards: IEC 60309-2
- Material: Thermoplastic (halogen free)
- Impact resistance: IK08 (1.7kg with a striking energy of 2J)
- Operating temperature: -25 mm +40°C (max operating temperature +60°C)
- Cable inlet: External cable stay with tulip clamping IP67 gland
Male plugs (straight cable exit) 16 - 125A
| SERIES | OPTIMA |
| AMPERAGE | 125A |
| INSULATED VOLTAGE | 690 VAC |
| OPERATING TEMPERATURE | -25 - +40°C (max operating temperature +60°C) |
| GLOW WIRE TEST | 650/850°C |
| MATERIAL | Engineering plastic (halogen free) |
| NUMBER OF POLES | 3P+N+E |
| IMPACT RESISTANCE | IK08 (1.7kg with a striking energy of 2J) |
| PIN CONFIGURATION | 5pin |
| INDEX PROTECTION IP | IP67/8/9 |
| DESCRIPTION | Male plug |
| CABLE OUTLET | Straight |
| CABLE INLET | External cable stay with tulip clamping IP67 gland |
