Timers & Control Relays · Plug-in timing & Monitoring devices

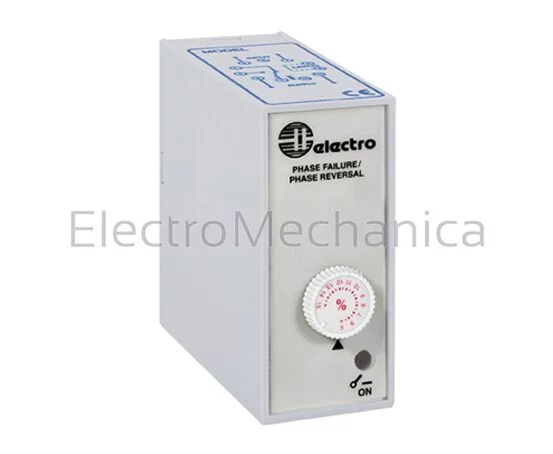

PH FAILURE & SEQUENCE REL 525VAC
SKU SF1525A
R 649.52incl. VAT
Quantity:
1
Specifications
- Category
- Timers & Control Relays
- Sub-category
- Plug-in timing & Monitoring devices
- Product code
- SF1525A
- Type
- Inventory Item
- INPUT SIGNAL
- 525VAC
- Sub Category
- Plug-in timing & Monitoring devices
- Pricing Group
- CAT J
- SUPPLY VOLTAGE
- 525VAC
- NUMBER OF PHASE(S)
- 3
Detailed Description
Phase Failure / Phase Sequence Monitor
The Electro 11 pin plug-in range of control and timing devices are to be installed into a standard 11 pin base making installation easy and convenient.
The SF1 Monitors negative phase sequence (NPS) voltage to detect phase failure, phase reversal and phase imbalance. The NPSvoltage of the unit is fixed at 7%. When any of these faults occur the unit will de-energize. The relay will only re-energize if the supply voltage corrects itself. The unit will not react to a balanced voltage variation.
Features:
- Relay ON LED
- Output 10A SPDT
- Detection of phase asymmetry
- Insensitive to regenerated EMF
- Fastresponse to reverse phase sequence
- Monitoring relay for 3-phase voltage control
- Measures if all 3 phases present and in sequence
- Insusceptible to balanced supply voltage variation
| DESCRIPTION | Phase failure / sequence relay |
| CONTACT | 10A SPDT |
| FUNCTION | Phase failure |
| RATED VOLTAGE | 250V |
| MECHANICAL LIFE | 10x106 cycles |
| PROTECTION INDEX IP | IP 20 |
| OPERATING TEMPERATURE | -10 to + 50°C |
| STORAGE TEMPERATURE | -50 to + 85°C |
| DIMENSIONS (MM) | (H) 92 x (W) 36 x (D) 64 |
