Power Distribution & Control · Industrial plugs & Sockets

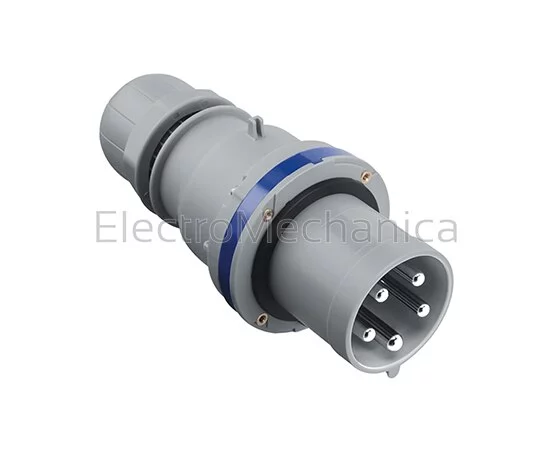

63A 2P+E IP54 MALE PLUG
SKU 213.6333
R 706.56incl. VAT
Quantity:
1
Specifications
- Category
- Power Distribution & Control
- Sub-category
- Industrial plugs & Sockets
- Product code
- 213.6333
- Type
- Inventory Item
- SERIES
- Optima
- IP RATING
- IP44/54
- Sub Category
- Industrial plugs & Sockets
- CONFIGURATION
- 2P+E
- HOUR POSITION
- 6h
- Pricing Group
- CAT I
- VOLTAGE RANGE
- 200-250V
- CURRENT RATING
- 63A
- NUMBER OF PINS
- 3pin
Detailed Description
Industrial plugs and sockets
Optima series
- Insulation voltage: 690 VAC
- Standards: IEC 60309-2
- Material: Thermoplastic (halogen free)
- Impact resistance: IK08 (1.7kg with a striking energy of 2J)
- Operating temperature: -25 mm +40°C (max operating temperature +60°C)
- Cable inlet: External cable stay with tulip clamping IP67 gland
Male plugs (straight cable exit) 16 - 125A
| SERIES | OPTIMA |
| AMPERAGE | 63A |
| INSULATED VOLTAGE | 690 VAC |
| OPERATING TEMPERATURE | -25 - +40°C (max operating temperature +60°C) |
| GLOW WIRE TEST | 650/850°C |
| MATERIAL | Engineering plastic (halogen free) |
| NUMBER OF POLES | 2P+E |
| IMPACT RESISTANCE | IK08 (1.7kg with a striking energy of 2J) |
| PIN CONFIGURATION | 3pin |
| INDEX PROTECTION IP | IP44/54 |
| DESCRIPTION | Male plug |
| CABLE OUTLET | Straight |
| CABLE INLET | External cable stay with tulip clamping IP67 gland |
