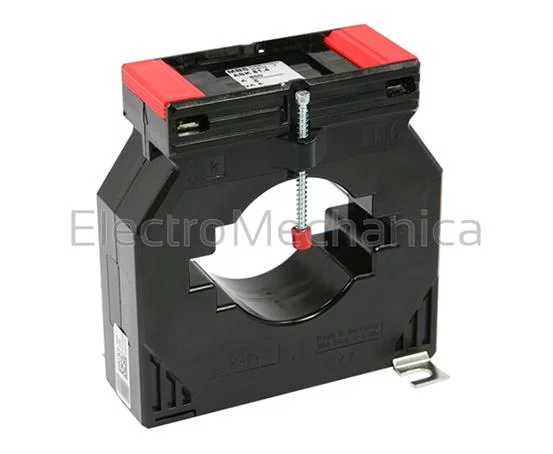

ASK 81.4 1000/5A CT cl 0.5
21023
R 1 874.50 Incl VAT
(0 reviews)
Online ordering is temporarily unavailable. You can still browse this product or request a spec sheet.
Quantity:
1
Product Details
Category:Power Distribution & Control
Sub category:Current transformers
Product code:21023
Type:Inventory Item
RATIO:1000/5A
BURDEN:15VA
SERIES:ASK 81.4
DIMENSIONS:Ø55mm
Sub Category:Current transformers
Pricing Group:CAT E
Detailed Description
Current transformers
General specifications:
- Isolation class: E
- Maximum operating voltage: Um ‰Â¤ 0.72 kV
- Nominal frequency: 50Hz (others on request)
- Nominal thermal short-time current: Ith = 60 x In
- Over-current limiting factor: FS 5 up to 1500 A nominal current
- MBS AG current transformers conform fully to: DIN VDE 0414/1 - DIN 42600 - IEC 61869/1+2 - VBG 4
Class 0.5 current transformers 5A secondary (class 0.2 available on request)
ASK 81.4 current transformers
| MODEL | ASK 81.4 |
| RATIO | 1000/5A |
| ROUND CONDUCTOR (⌀) | 55 mm |
| PRIMARY BAR CONDUCTOR | 80 X 10 / 60 X 30 mm |
| DESCRIPTION | Standard current transformer |
| CLASS | 0.5 |
| VA | 15 |
| DIMENSIONS (MM) | (H) 124 x (W) 120 x (D) 58 |
